I pulled this 2004 Alexander Henry fabric called Misty Jungle from my stash to play with adding Capped 60 cubes to my OBW.
Although the fabric has a 24″ repeat the design elements were about 3 to 4 inches, so I decided to cut my strips 3 1/4″ to make 5″ finished hexagons. Using my Star 60 tool, I cut my equilateral triangles.
Once I designed my hexies to get an almost final design, It’s time to decide about cubes. I am using Deb Tucker’s Capped 60 Techniques Sheet. The Capped 60 Technique Sheet offers cutting instruction for 17 sizes in whole & half inch increments.

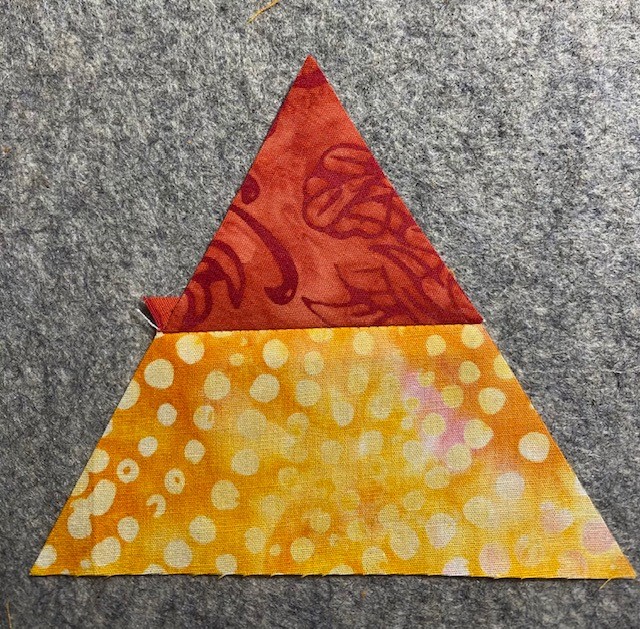

Above is a Capped 60 Unit. The cutting instructions are based on finished units. I cut my triangles for a 5″ finished hexagon, which would mean my individual triangles would measure 3″ unfinished and 2 1/2″ finished.
We begin by choosing 3 fabrics, light, medium and dark values. Where you place the light fabric gives the illusion of light shinning on it. The strips for both the trapezoids and triangles are the same width.
Cutting Trapezoids. I am making 2 1/2″ finished units so I cut 2″ strips and placed the 3 1/2″ Bottom Horizontal Line on the bottom of my strip to cut my trapezoids. Then rotate the Star 60 tool and place the 3 1/2″ line on the top of the strip and continue cutting trapezoids.
Cutting Triangles. Align the mark near the tip of the tool with the top of the strip and the Horizontal Guideline that corresponds to the width of the strip and cut. Rotate the Star 60 tool and continue cutting your triangles.
For each cubed hexagon you will need 2 light, 2 medium and 2 dark trapezoids, and 2 light, 2 medium and 2 dark triangles.
To make this cube begin by laying out your trapezoids and triangles shown above.
Align one edge of the triangle with the top of the trapezoid, matching the flat edge of the triangle to the top of the trapezoid as shown above.
Once you have laid out your trapezoids and triangles and know what triangles are to be stitched to what trapezoids you can chain stitch and make the process go fast.
Stitch and press seams open. Your unit consists of the Point, Left Side, Right Side and Base.
Trimming the Base. Position the unit so that the base is on the right if right handed or left if left handed. Align the Diamond Point Guideline that corresponds to the finished size of the unit on the seam between the triangle and trapezoid as shown. Trim the base along the side of the ruler.
Trimming the Right and/or Left Side. Locate the Triangle Point Trim Line in the chart for your size. Position the Horizontal Guideline that corresponds to the Triangle Point Trim Line on the seam between the trapezoid and triangle. Trim both sides.
Layout your trimmed units and stitch them into pairs of three as you do your equilateral triangles for the hexagons. Press seams open.
I chose to make Capped 60 Cubes in three color ways. I auditioned them in several places before deciding on the best placement.
When I cut my strips for the hexagons I had 2 1/2″ left, not enough for the hexies. I decided to cut out smaller triangles to add to a border.
To give the illusion that the hexies are floating I added Half Hexies cut from the border fabric. The instructions for cutting Half Hexagons are located on page 10 of your Star 60 Instructions.
Click here to download Star 60 Instructions:
