I love the Wizard of Oz! I know it is a very controversial movie, either you love it or hate it! In 2008 Quilting Treasures came out with the Wizard of Oz fabric line. The first fabrics were in sepia tones. I have made many, many Wizard of Oz quilts from my extensive Wizard of Oz fabric stash. This Road to Oz is for me!

I used Studio 180 Design’s Star 60 Tool to enhance my One Block Wonder. Aside from cutting the equilateral triangles I will share how to cut Whole Hexagons, Half Hexagons and make a Half Hexie Braid for borders with the Star 60 tool.

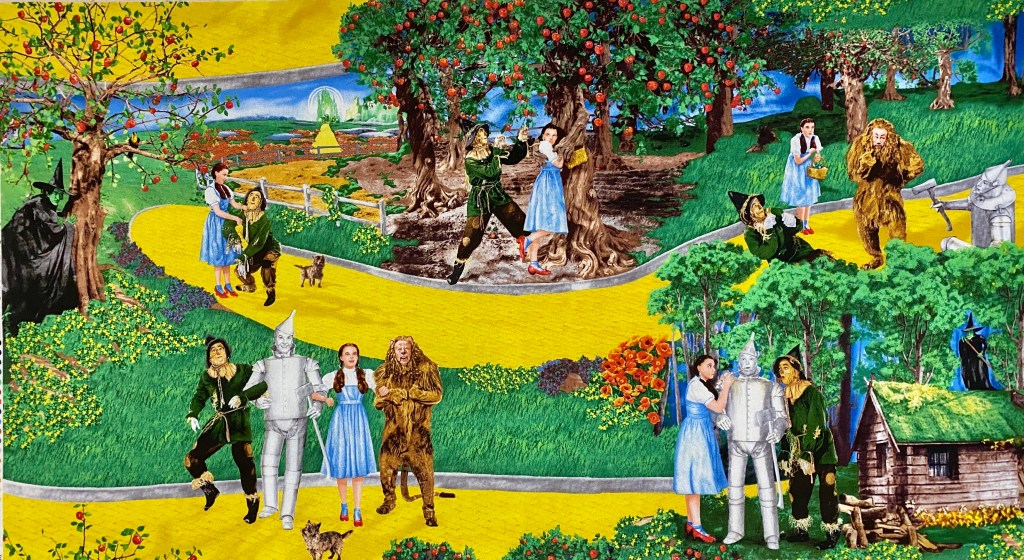

This fabric by Quilting Treasures came out in 2009 and has a 23″ repeat. I’ve decided to use it as a panel on the quilt top. The width is a little over 43″. I need to determine what size finished hexie will fit evenly across the bottom & top of the panel. If I cut my strips 3 3/4″ wide they will produce 6″ finished hexies. If I trim my panel to 42″, I can fit 7 – 6″ finished hexies across the bottom and top of the panel. Note: I NEVER trim the panel until I have my hexies designed and verify they fit the way I want them to.

Strips are cut.

•

•

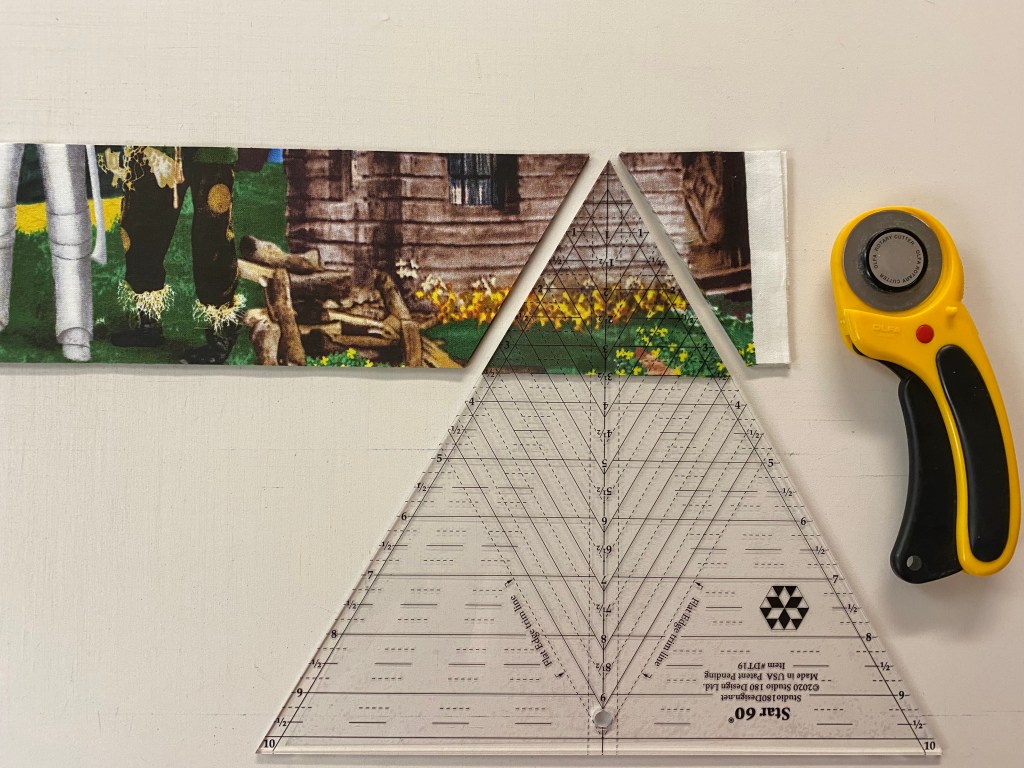

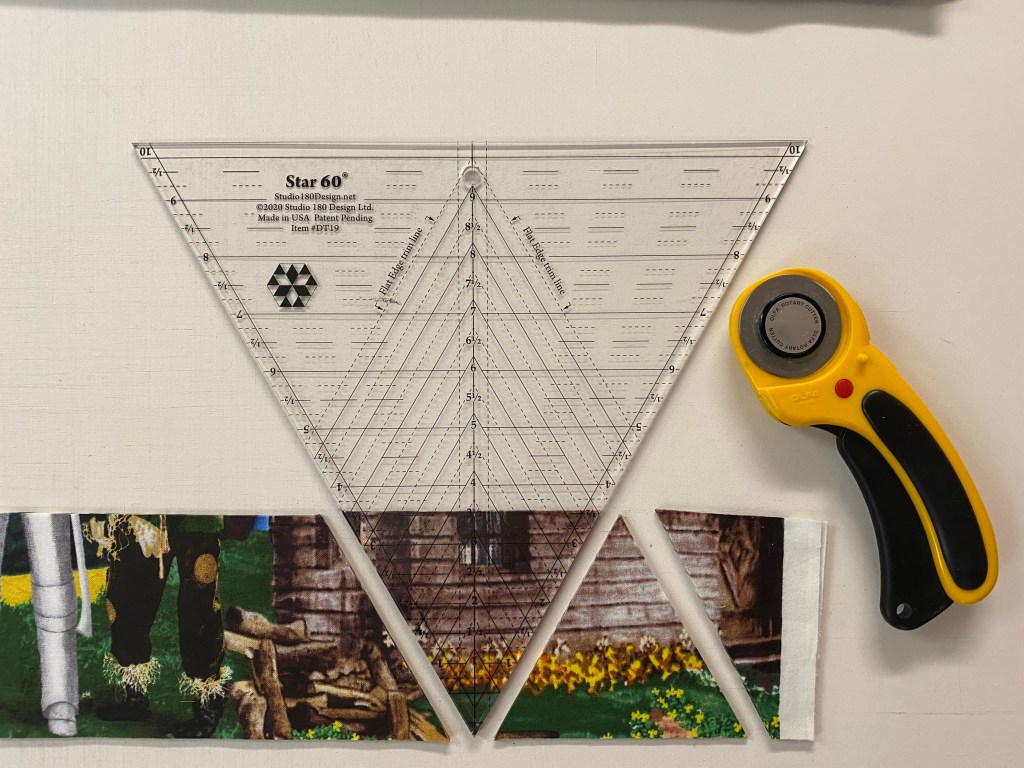

I used my Star 60 Tool from Studio Design to cut my equilateral triangles. Be sure the tool point just touches the cut edge of the strips. we want dogears to help lining up blocks and rows.

•

•

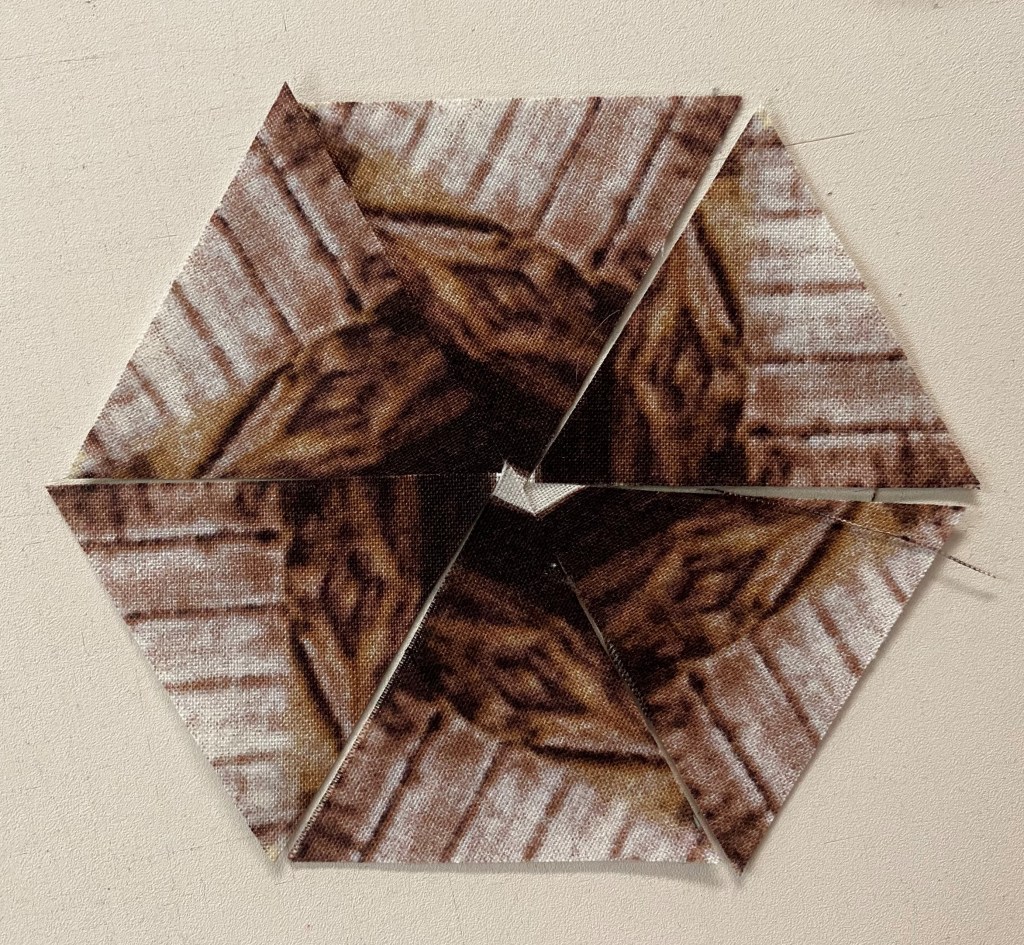

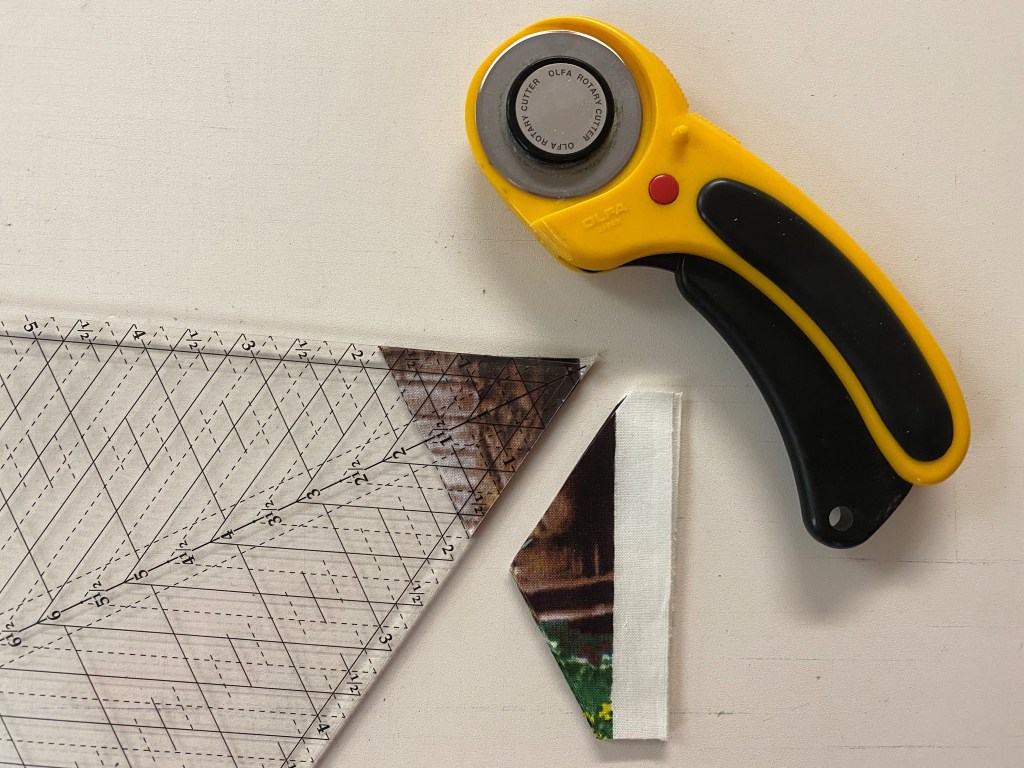

TIP: You know those pieces you have left at the of the strips that are too small for a full size hexie? One side is already cut at a 60 degree angle, if you place the tool edge on the straight side of the pieces, adjusting the edge of the tool to not include the selvedge and cut, you will have small hexie that can be appliqued onto your top.

•

•

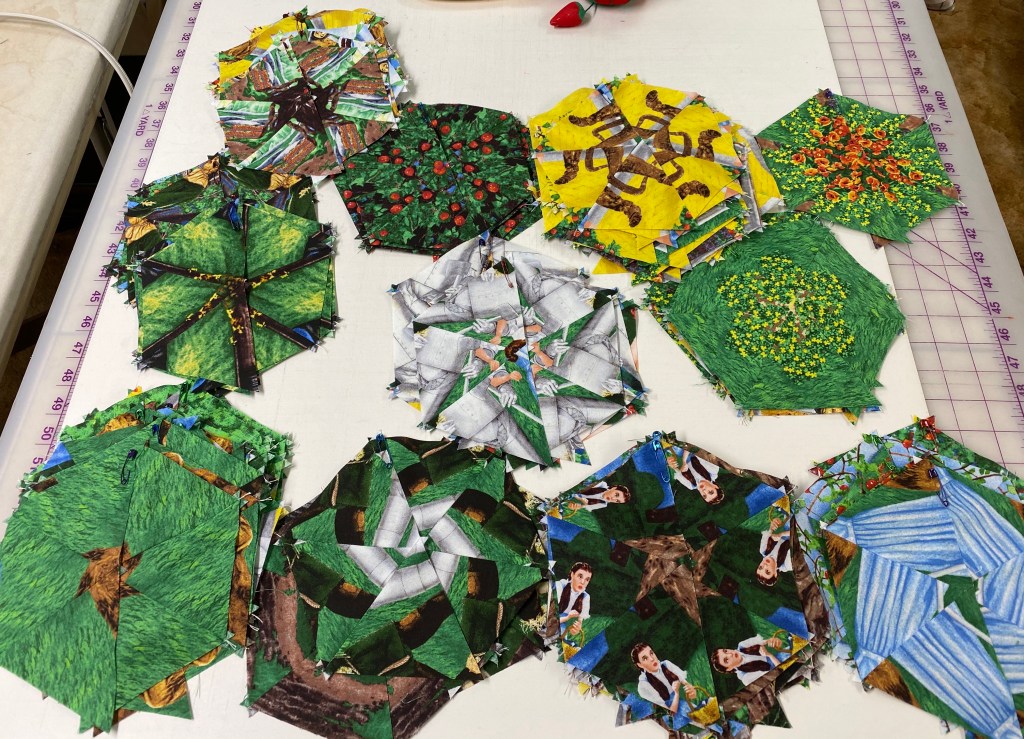

My triangles are cut, stitched and sorted by predominate color.

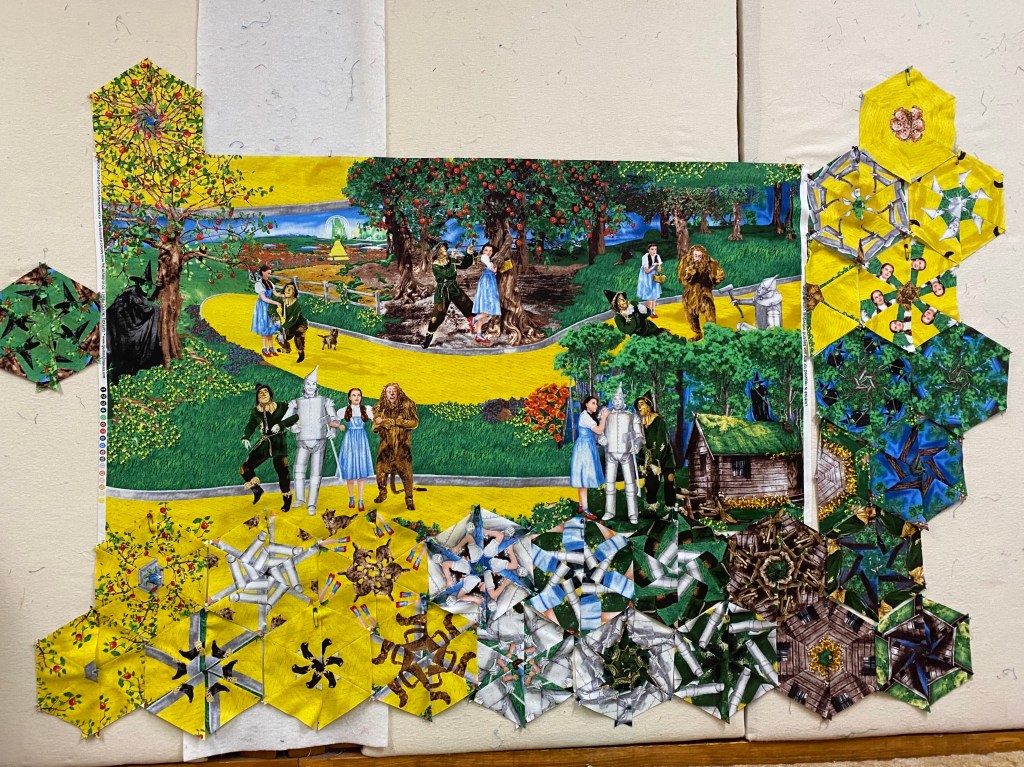

Placing the panel on the design wall takes some thought and planning. My design wall consists of 4 closet doors 24″ wide, that are covered with flannel over insulation, so I have plenty of room. My goal was to create a path that would connect the yellow brick road on the right side with the yellow brick road on the top of the panel. I placed the panel so there would be more room on the right side and the top of the panel.

Remember, I can fit 7 – 6″ finished hexies across the bottom of the panel. The hexies are not finished yet, so they don’t fit well. They extend further than the panel. Keep this in mind to keep track of where your rows are so you don’t get confused. If 7 finished hexies will fit across the bottom, that means 14 half hexies will establish the width of the bottom section and the top section. I started at the bottom of the panel and then worked my way up the sides. You may start at either the top or the Bottom, it doesn’t matter.

•

•

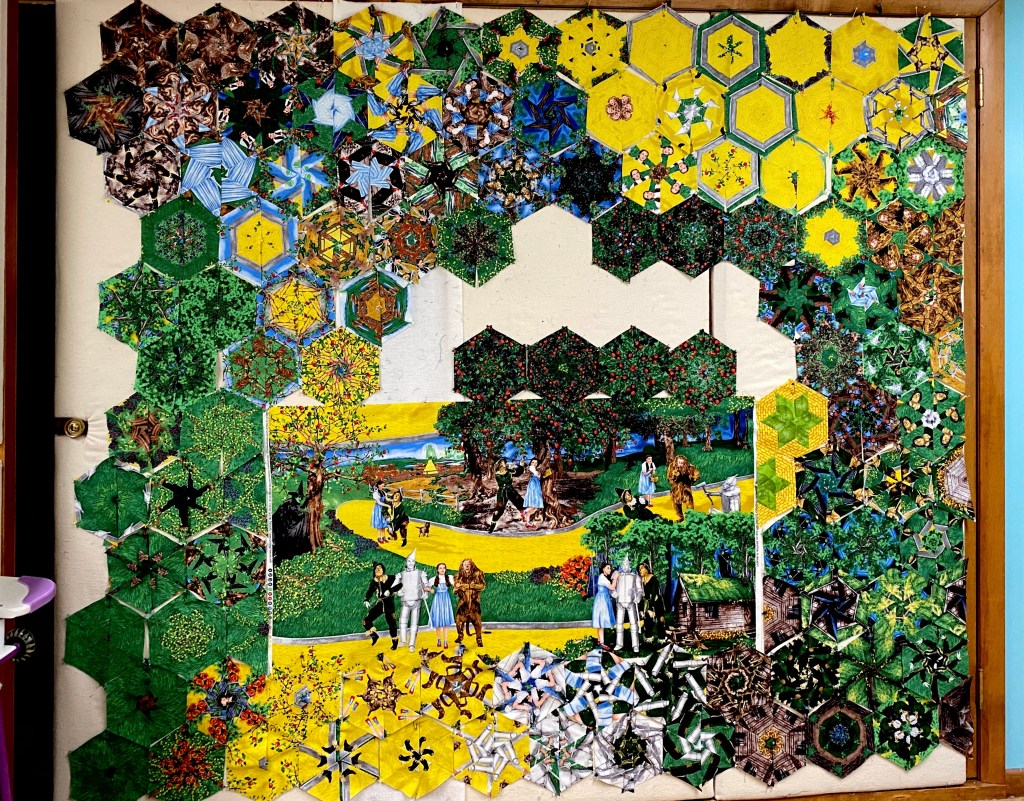

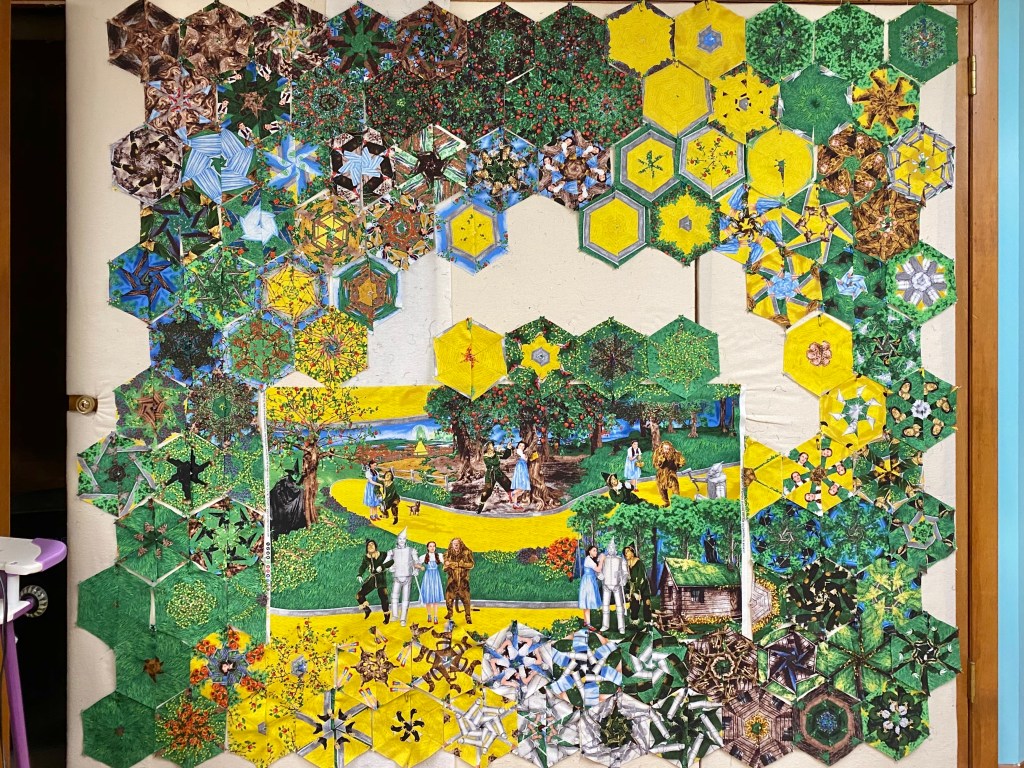

First attempt at my design was close, but I didn’t feel the yellow hexies I had were creating a vibrant connecting path. I tried again surrounding my path with darker hexies & decided to create some Star 60 Units instead.

•

•

Cutting the Diamonds: To create a Star 60 Unit that contains a diamond with side triangles that would create a 6″ finished hexie I went to the Basic Shape Cutting Chart in the Star 60 instructions. I followed the cutting instructions for 2 1/2″ finished units. For my diamonds, I cut a 2″ WOF strip. Trim the first edge at a 60 degree angle as shown above. Locate the Diamond Sub-cut Guideline in the next column for 2 1/2″ finished unit which is 3 1/2″. Align those guidelines with the raw edges of the strip and the angled cut just made as shown above. Each hexie will need 6 diamonds.

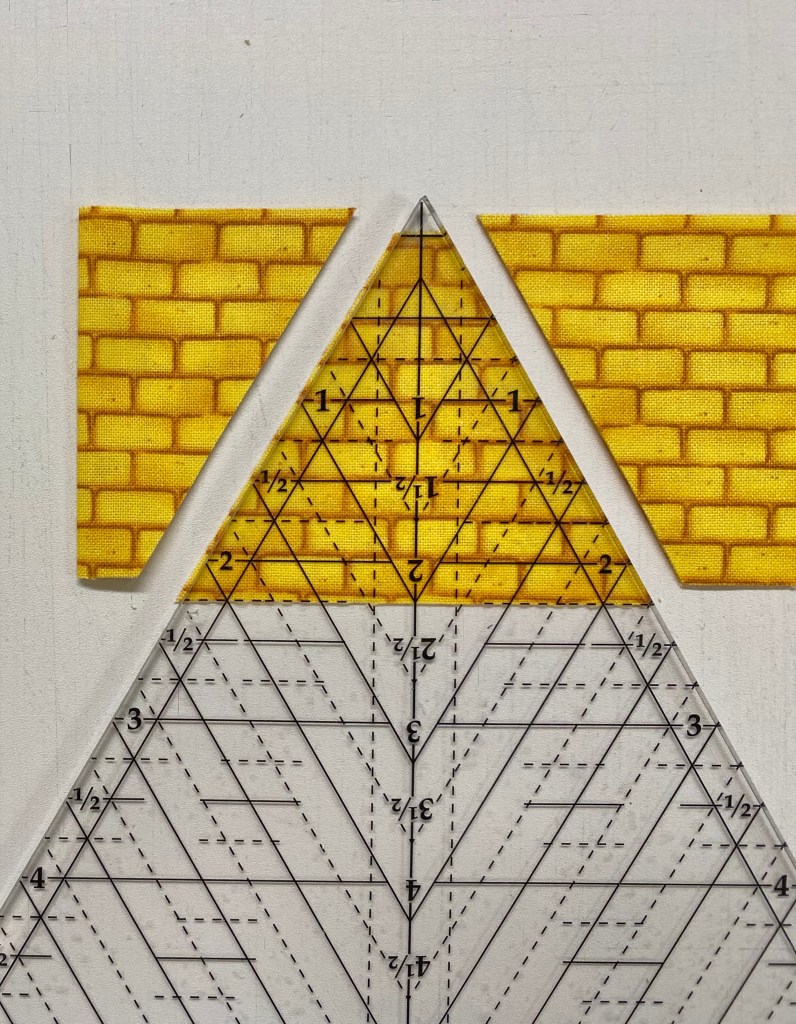

Cutting the Side Triangles.: Checking the chart for Side Triangle Strip size, I cut my 2 1/4″ WOF strips. Align the mark near the top of the tool with the top of the strip and the horizontal line on the tool that corresponds to the width if the strip (2 1/4″). Cut the side triangles then rotate the tool and cut again. Each diamond will need two side triangles. Follow the Star 60 tool instructions for Piecing the side triangles to the diamond.

Trimming Star 60 Units: We will be trimming the flat end of the unit only! Align the Flat Edge trim lines with the seams of the diamond. For lefty’s, rotate the unit so the flat side is on left side. Six of these trimmed Star 60 units are the same size as a stack of 6 equilateral triangles cut from a 3 3/4″ strip. These Star 60 units can be made in 17 sizes.

I loved the way the Star 60 units created a vibrant path to connect to the Yellow Brick Road. You notice a very light block near center of the top. That is Glinda the Good Witch. She wasn’t on the panel but I had to add her!

Cutting Whole Hexagons: I wanted a block that contained the Emerald City. I forgot to take a picture while I cut it, so the instructions below use a different fabric.

•

•

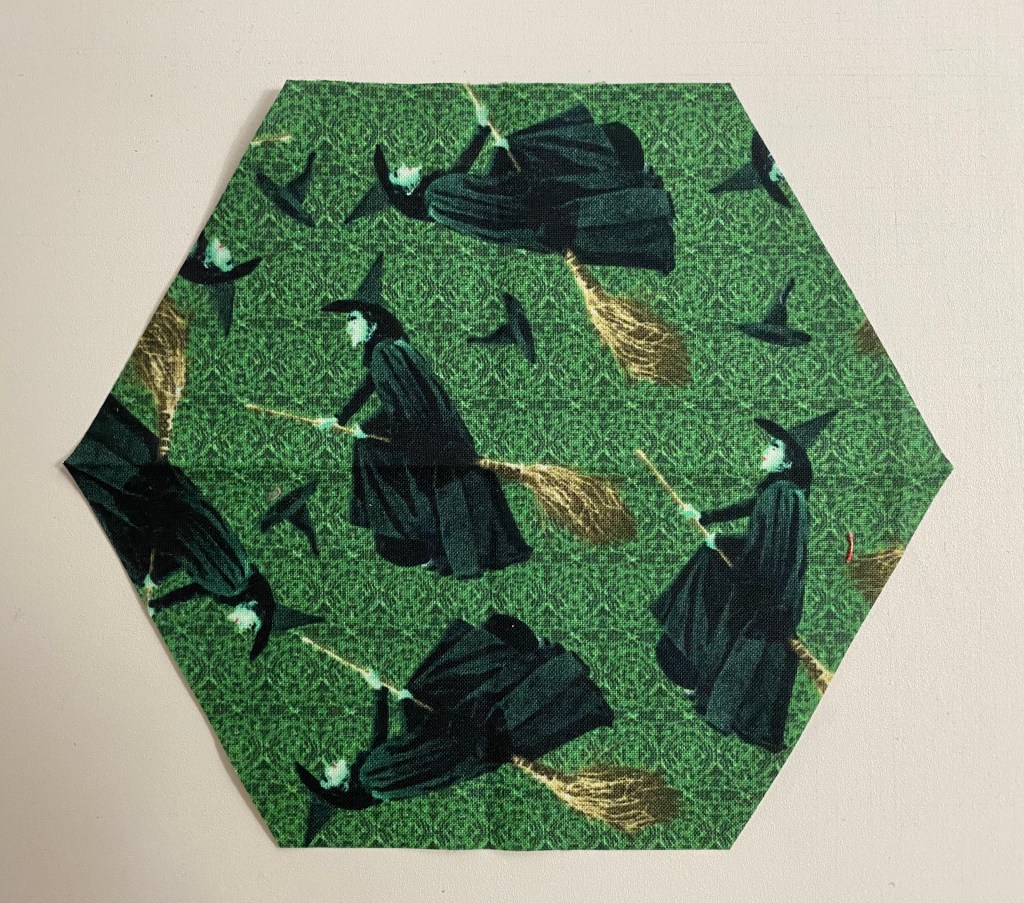

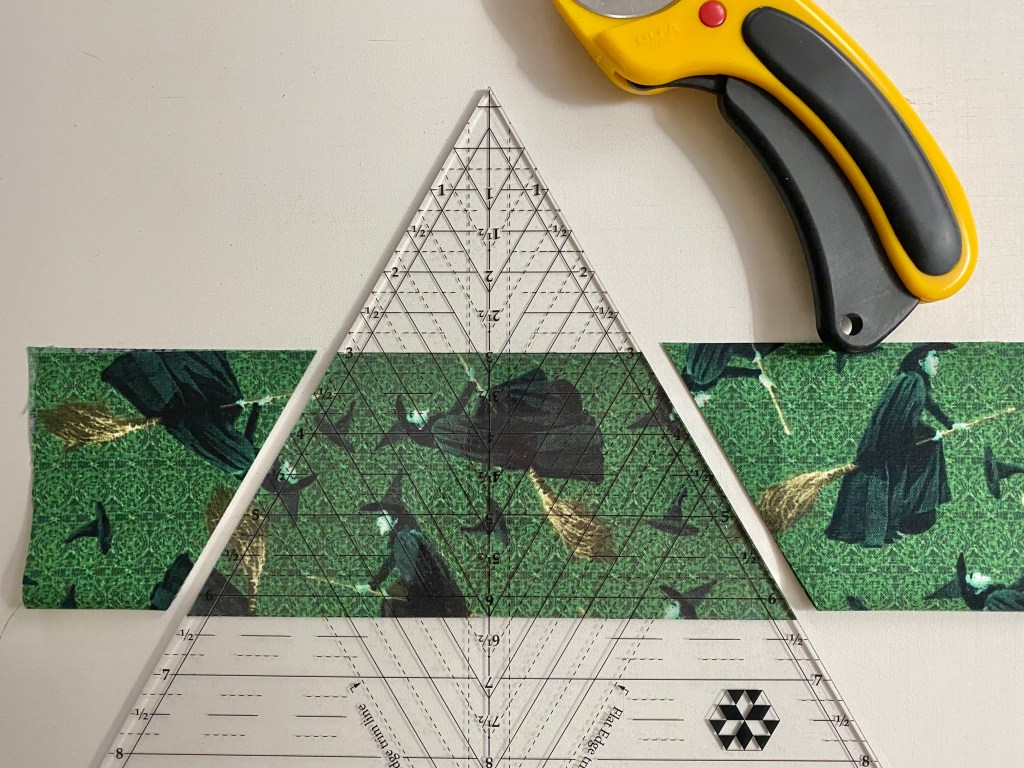

The Hexagon Cutting Chart allows you to cut whole hexagons in 15 sizes. For a 6″ finished (6 1/2″ Unfinished) hexie, cut a strip 6 1/2″ wide. Fold the strip in half. Our Horizontal Guideline Placement is 6 1/4″. Place the 6 1/4″ line on the fold and cut both sides. You now have a 6 1/2″ unfinished whole hexagon.

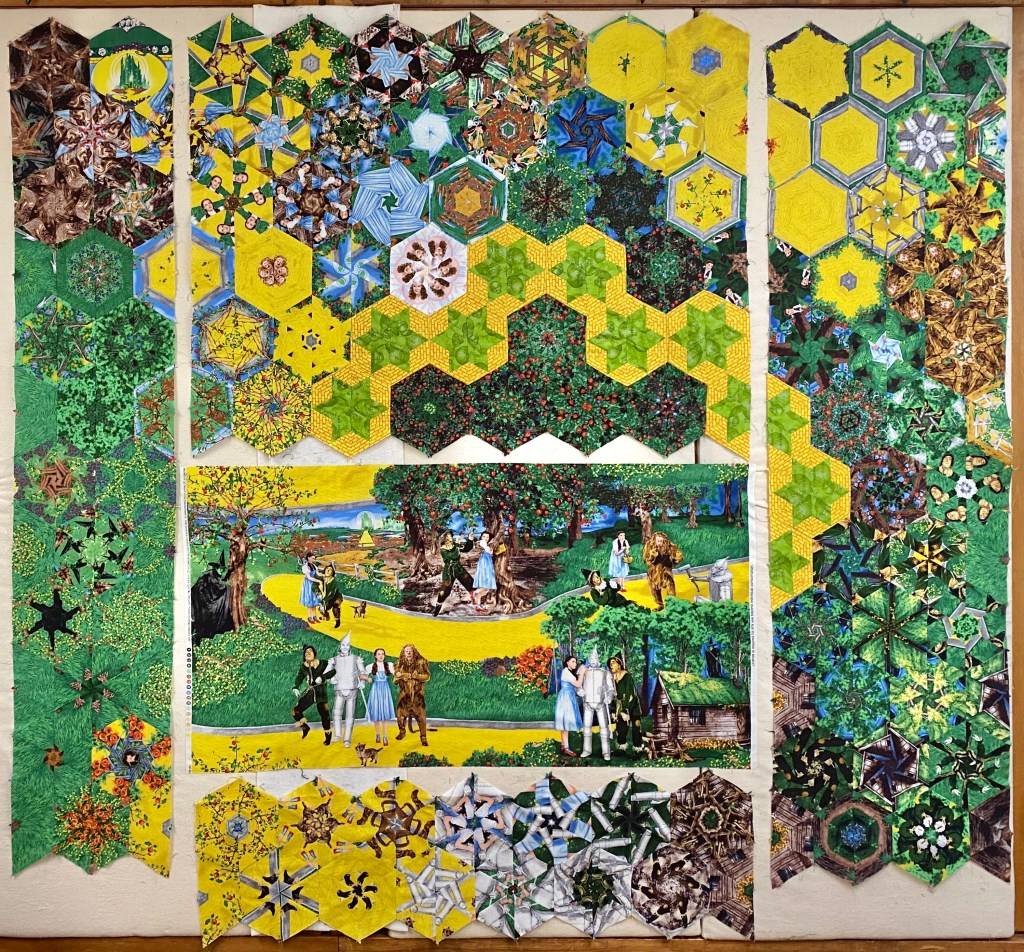

Once I was happy with the block placement, I number my rows across the top and under the bottom section. I stitched the rows into four sections, left, right, top & bottom..

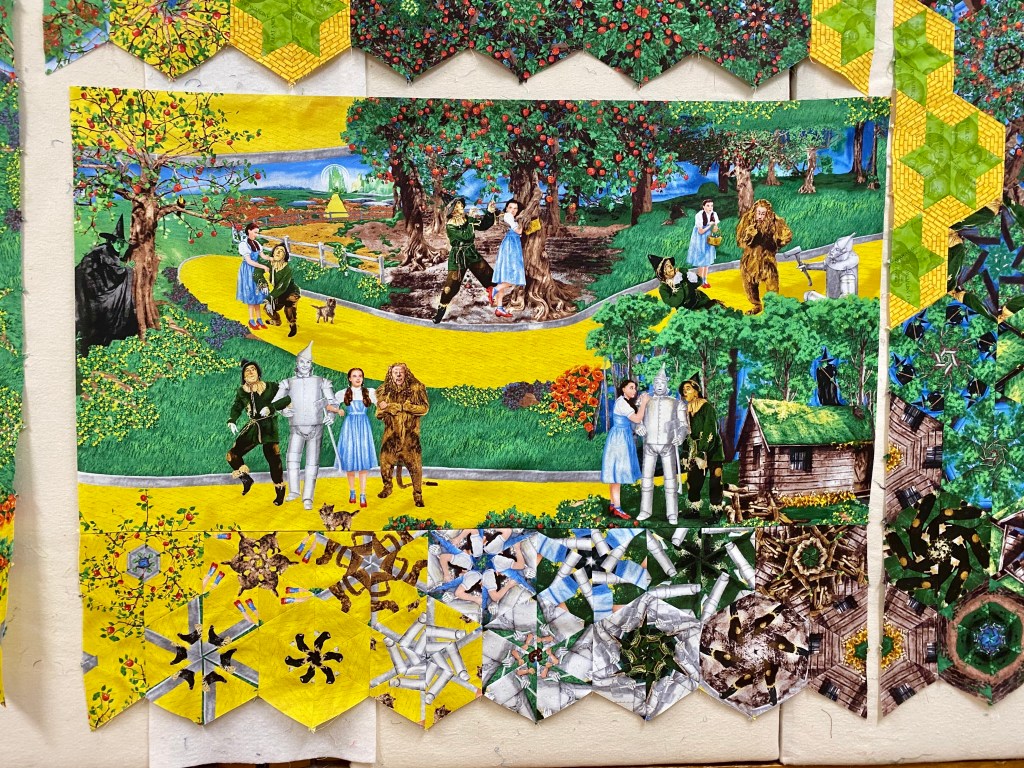

I decided to add the bottom section to panel first. I didn’t want to leave the points because they would cover up Toto, and I couldn’t have that, so I trimmed the top points only. I don’t trim the outside edges until the top is all stitched together.

Adding the bottom section allows me to line up and match the dogears of the rows on the right side.

•

•

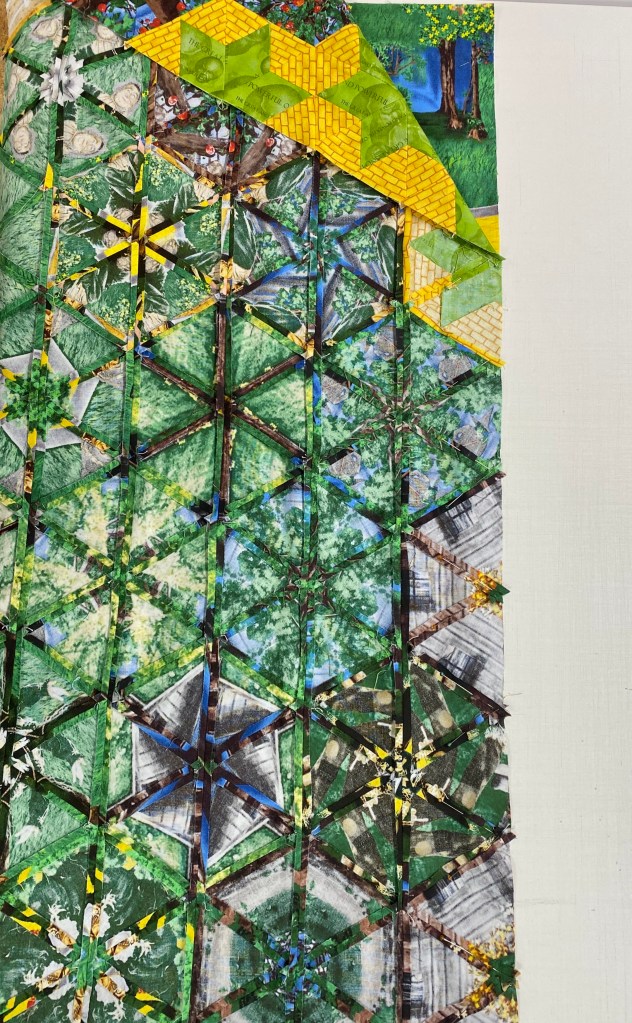

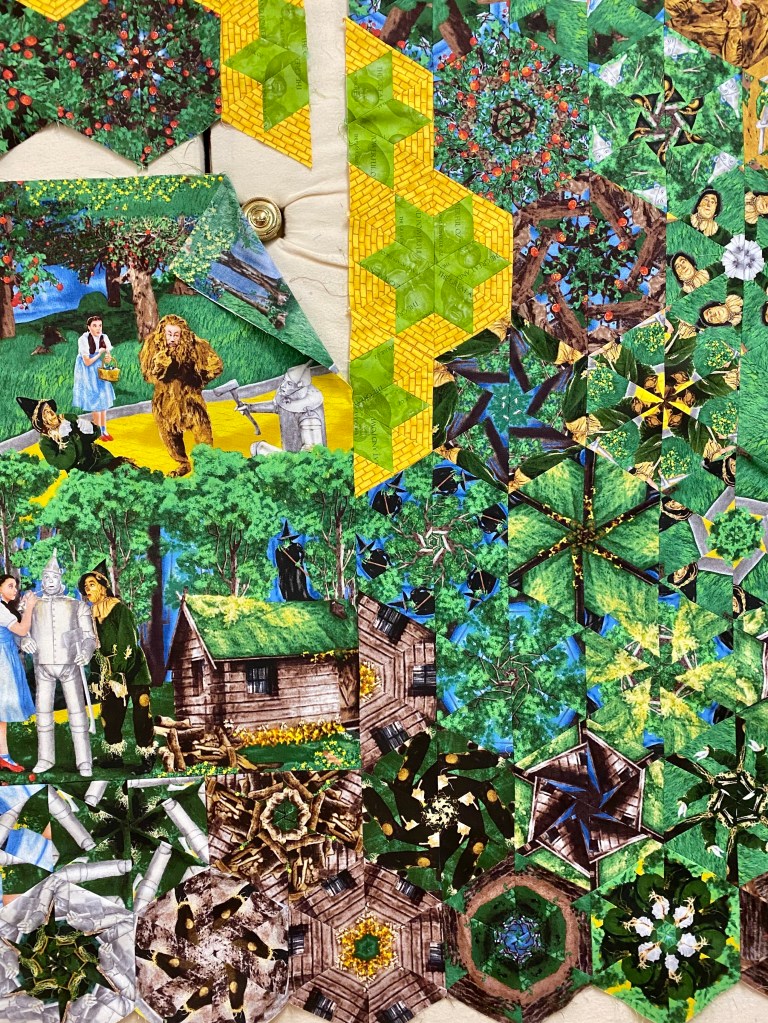

Pin and stitch the right side rows to the center section using a partial seam. I left a good 8 inches open to leave room for adjusting placement of the top section.

•

•

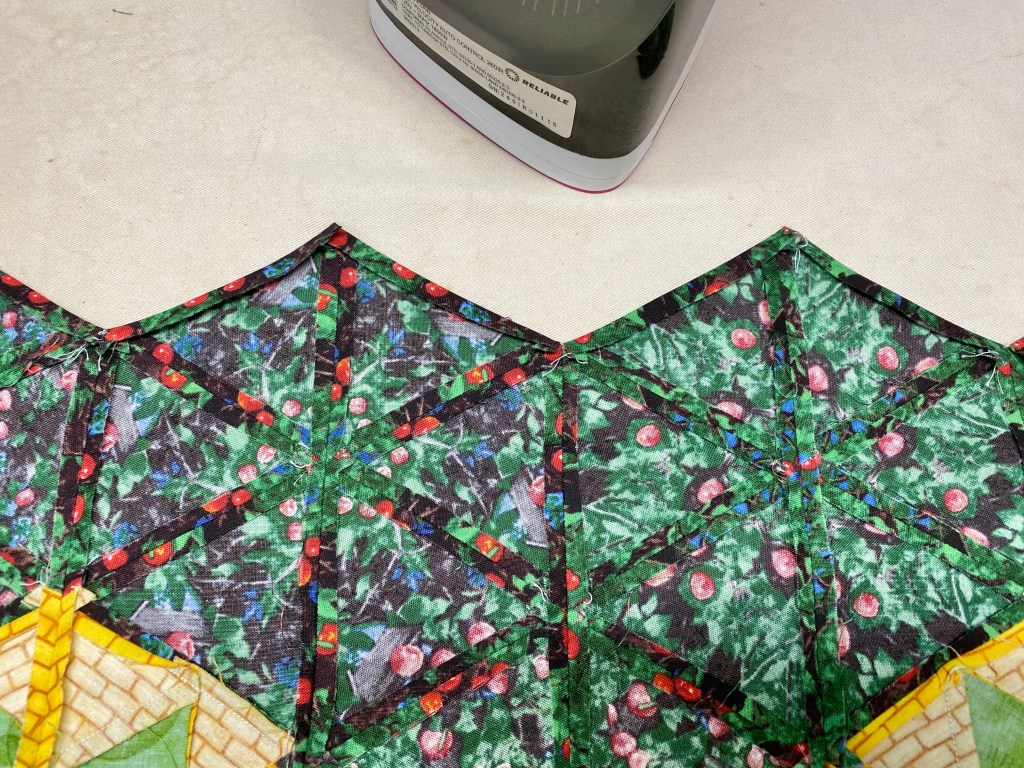

I decided to applique the top section to the panel by leaving the points on the bottom of the top section. I took stitches out about 1/4″ down between the valley of the blocks and pressed the edges under 1/4″.

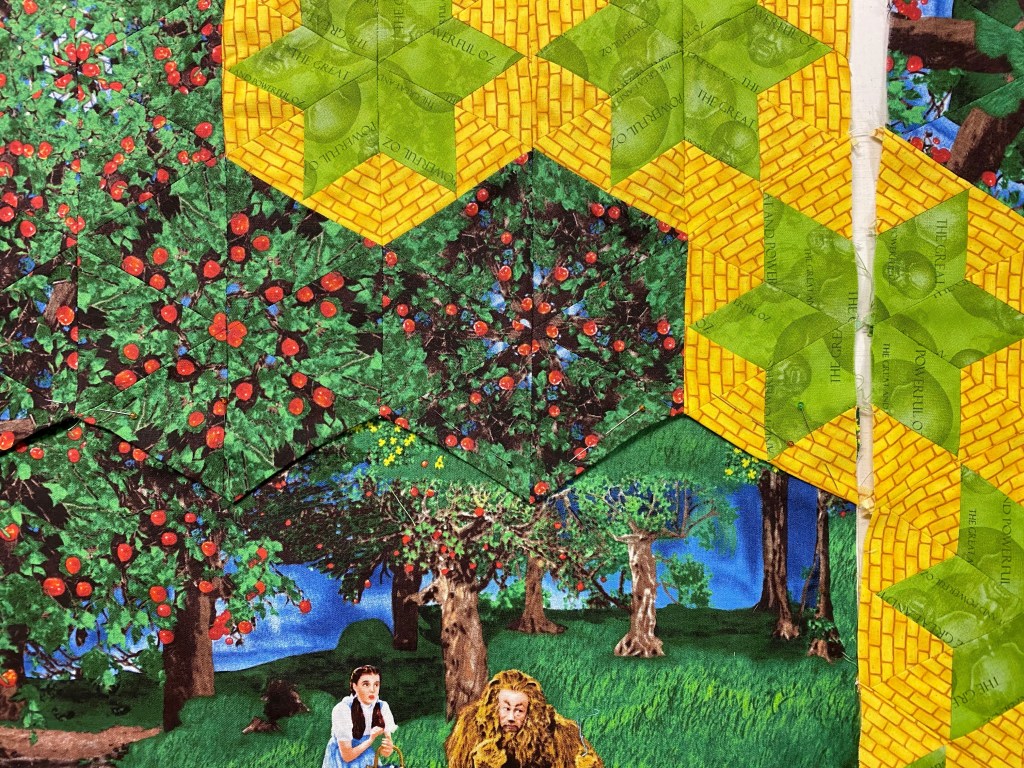

Lay out the center and the partially stitched right side rows. Lay the top section next to right side rows, matching up the dogears. This will show you how far down the top section will overlap onto the panel.

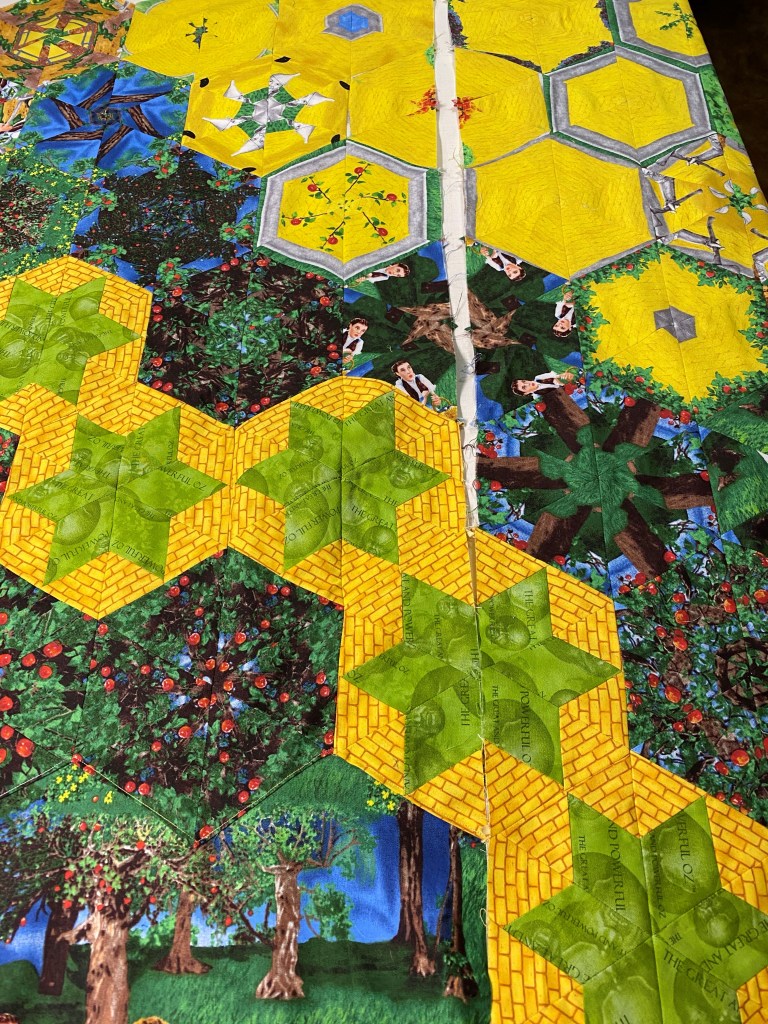

Pin it well, assuring it is straight and top stitch the center to the panel. Now I’m able to finish the partial seam for the right side.

•

•

Adding the left is very easy now. Just match up the dogears and stitch together.

Once the rows are all joined, I trim the points off the top and the bottom of the quilt top. I added a border to the top. I’m thinking about adding a small black border.

•

•

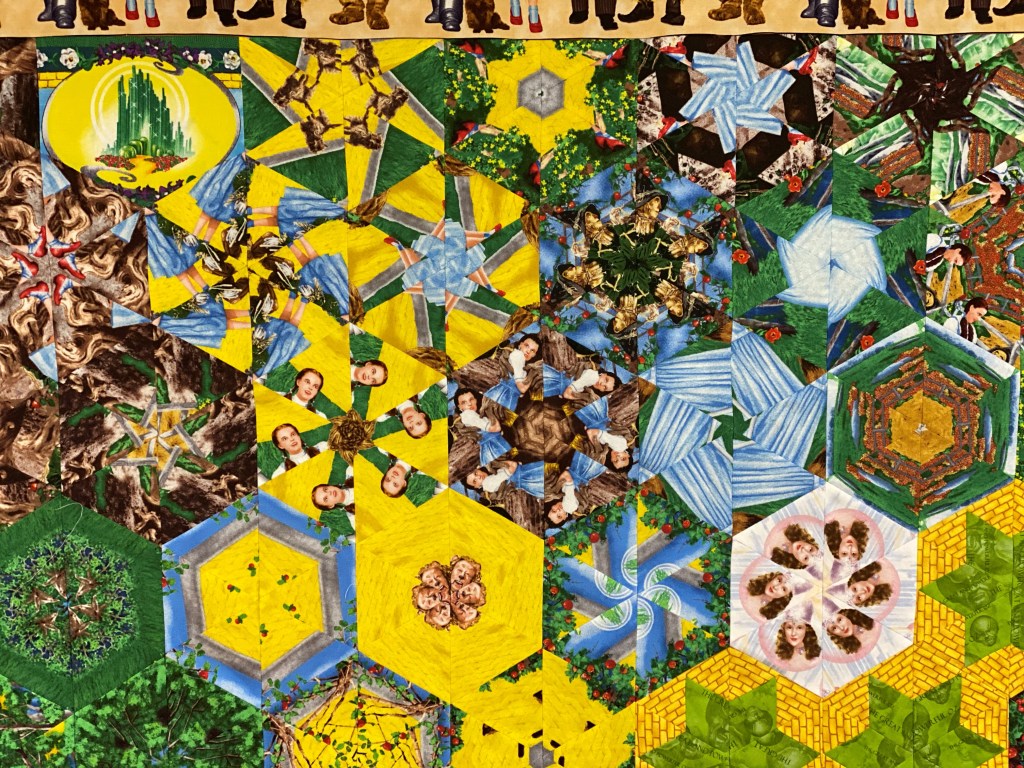

Above is a closeup of the showing Glinda & the Emerald City whole Hexie. One more technique I wanted to share is making Half Hexagons. The Star 60 tool instructions have a chart for cutting Half Hexagons in 8 sizes. I thought about making a Half Hexie Braid for a border but my top was too busy.

•

•

Half Hexies Braid: I followed the cutting instructions for 1 1/2″ finished half hexies. I cut 3 different 2 1/4″ strips. In the chart locate the “Bottom Horizontal Line” for 1 1/2″ finished half hexie, which is the 4″ line. Place it on the bottom of the strip and cut both sides. Rotate the tool placing the 4″ line on the top and aligning the edge just cut.

Above, I laid out my half hexies alternating the 3 colors.

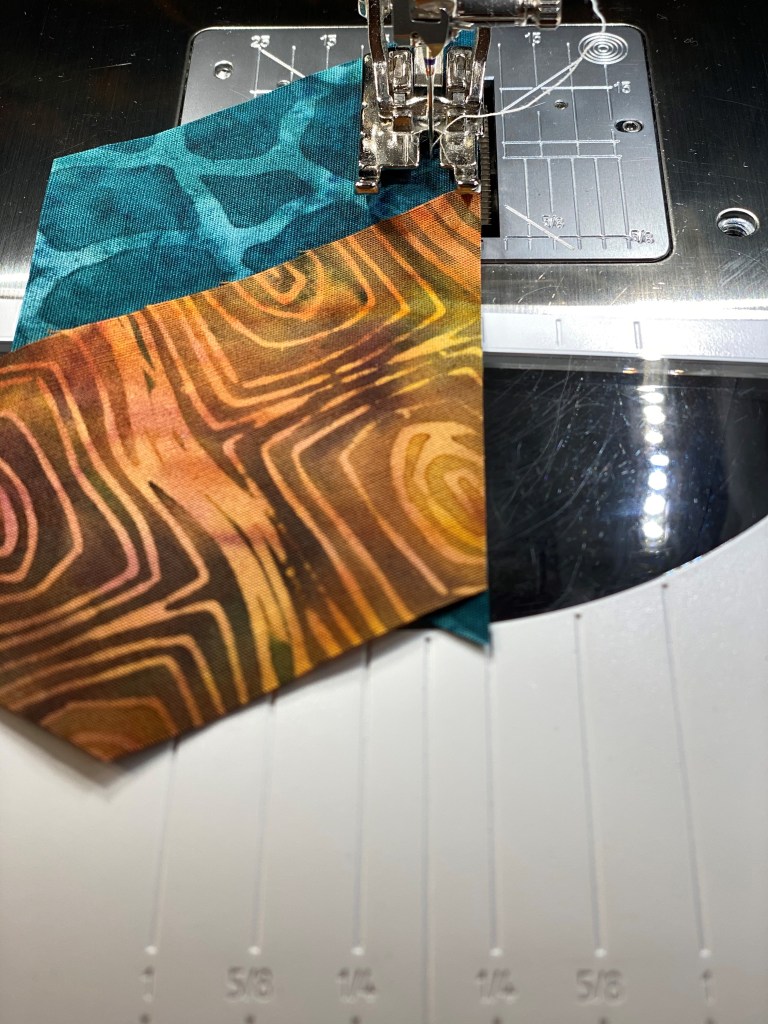

Pick up the first two right sides together, nudging the top half hexie 1/4″ from the point and stitch together. Press toward the first half hexie.

•

•

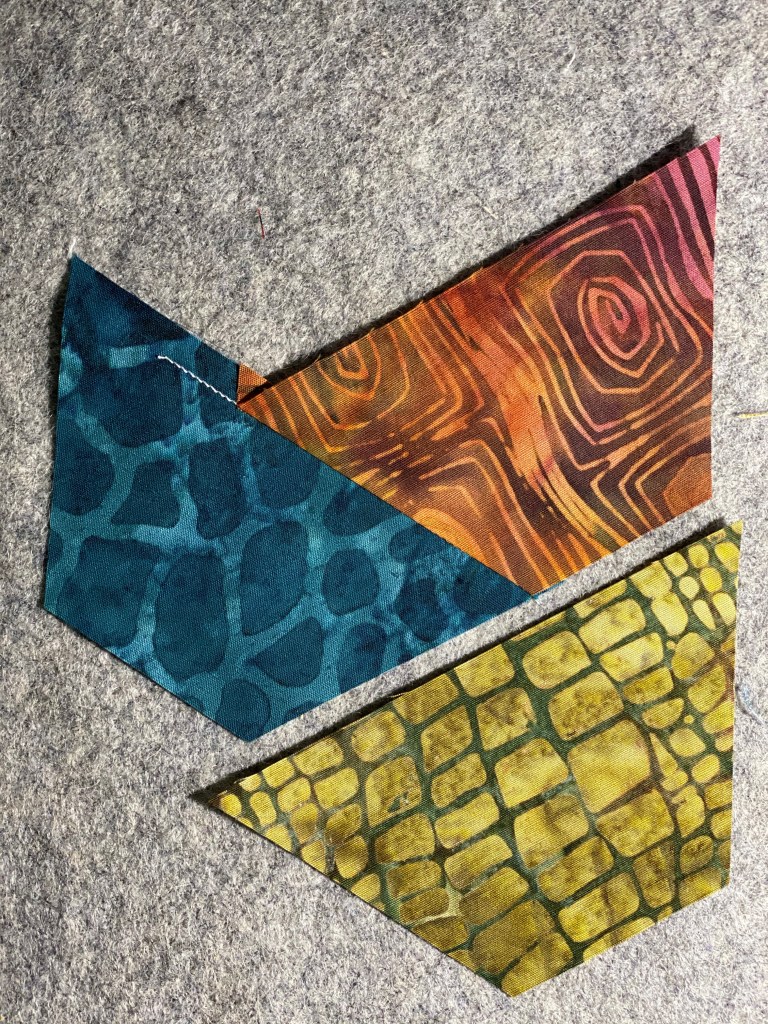

Add a third half hexie by centering it over the two stitched hexies.

•

•

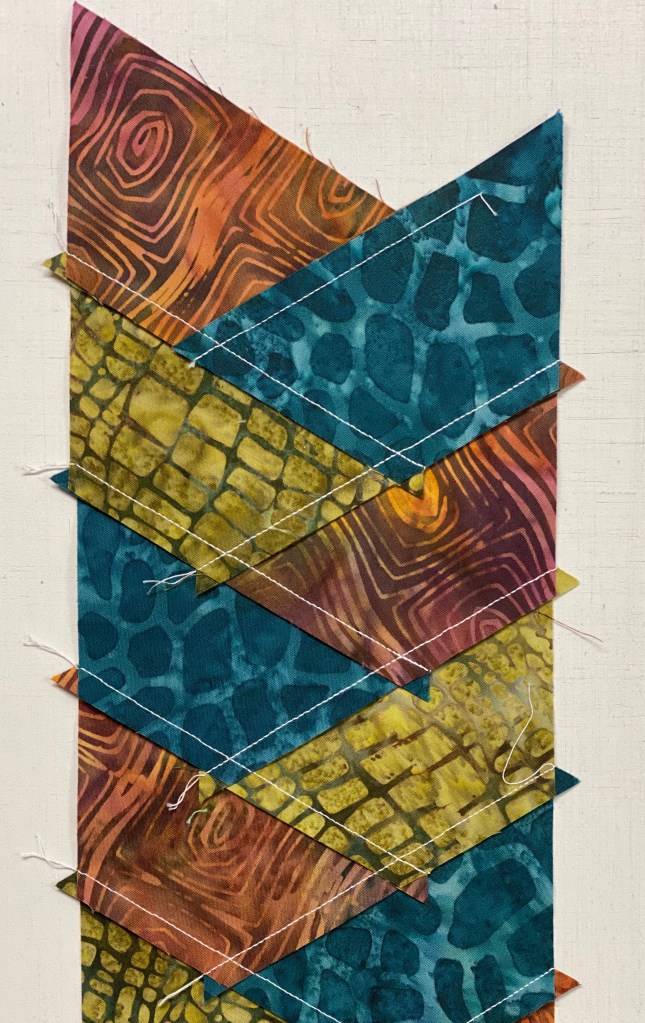

Keep adding half hexies until you have the length you want. After the first two half hexies are stitched and pressed, the remaining half hexies are pressed toward the unit just added. I think this a cool inner or outer border that I will be using on another quilt.

•

•

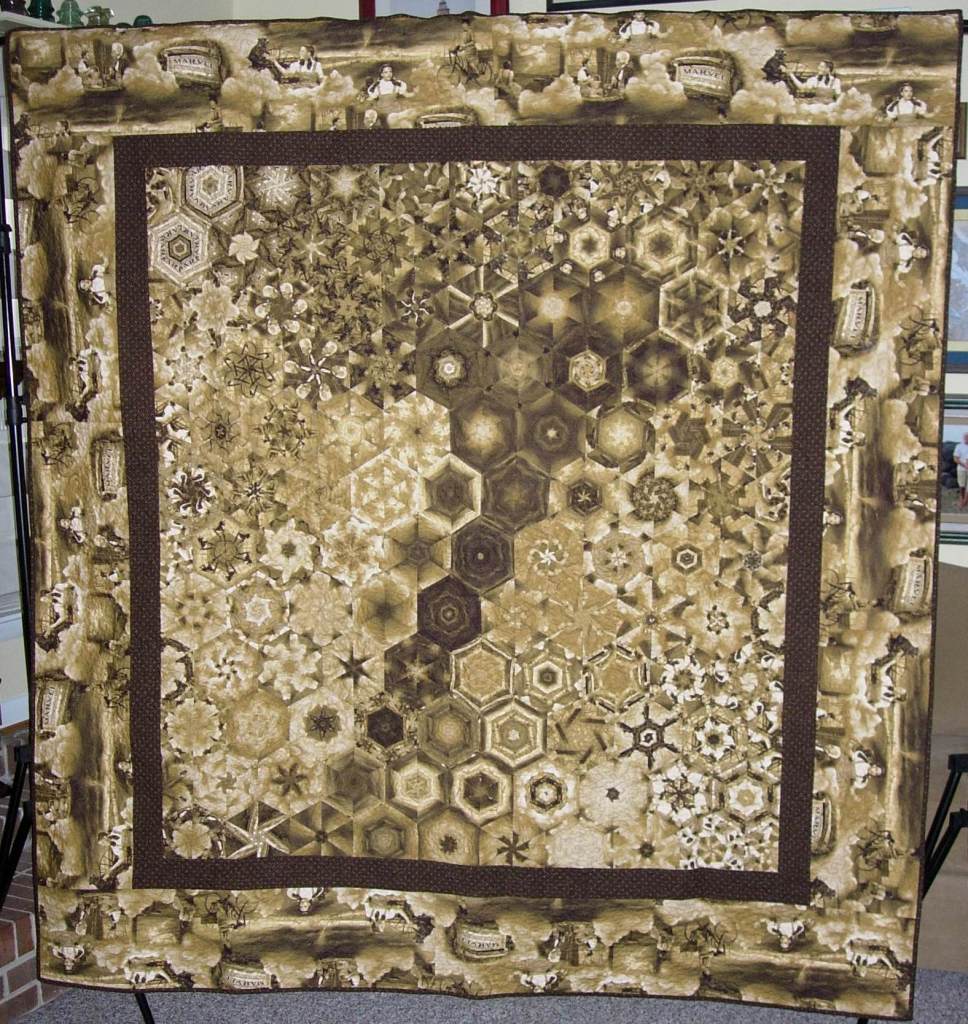

Above are “Inside the Twister” and “Yellow Brick Road with a Twist”.
