BlockBuster 5 – Whirligig

This is a very cool block, but be sure to use your best pressing, measuring and cutting skills as this is a 3 out of 4 stars for difficulty.  All the instructions to make this block can be found in the instructions that came with your Wing Clipper I, Tucker Trimmer I and on the Pickets & Quickets technique sheet.

This is a tricky block; you will need to pay attention to your fabric placement and the orientation of your quicket and picket units.  To help you out here is link to the Whirligig Black Line Layout you can print this sheet and use your colored pencils to help choose your fabrics and placement.

01 Fabric Choices

I chose five colors and a background fabric to make 4 different color units, each containing 2 flying geese, a Picket, a Quicket and a half square triangle.

The 05 Whirligig block can be made in 3 sizes:  6″, 9″ and 12″.   I chose the 12″ block.  Check the Cutting Chart, and choose the size block you want to make.  We will start with the Flying Geese Unit.  The cutting chart gives you the finished and the cut sizes of the units.  Check your Wing Clipper instructions to see what size starter squares you need to cut.  As you know when using the Wing Clipper you start with one large square and 4 small squares.

02 Mark for FG

Following the instructions use your Magic Wand and draw two diagonal lines on the back of your small squares.

03 Position

Position 2 of the small squares right sides together in diagonally opposite corners of the large square, nudging them in toward the center by just a few threads

Stitch on both drawn lines, them trim between the lines on the center diagonal.

06 Press

Press the seams toward the smaller triangles.  One of these units will make 2 flying geese, the other will be saved to make a left slanted Quicket.

Position one of the smaller squares in the corner of the previously pieced unit.  Nudge the square in like you did before.  Stitch on the drawn lines and trim between the lines as before.

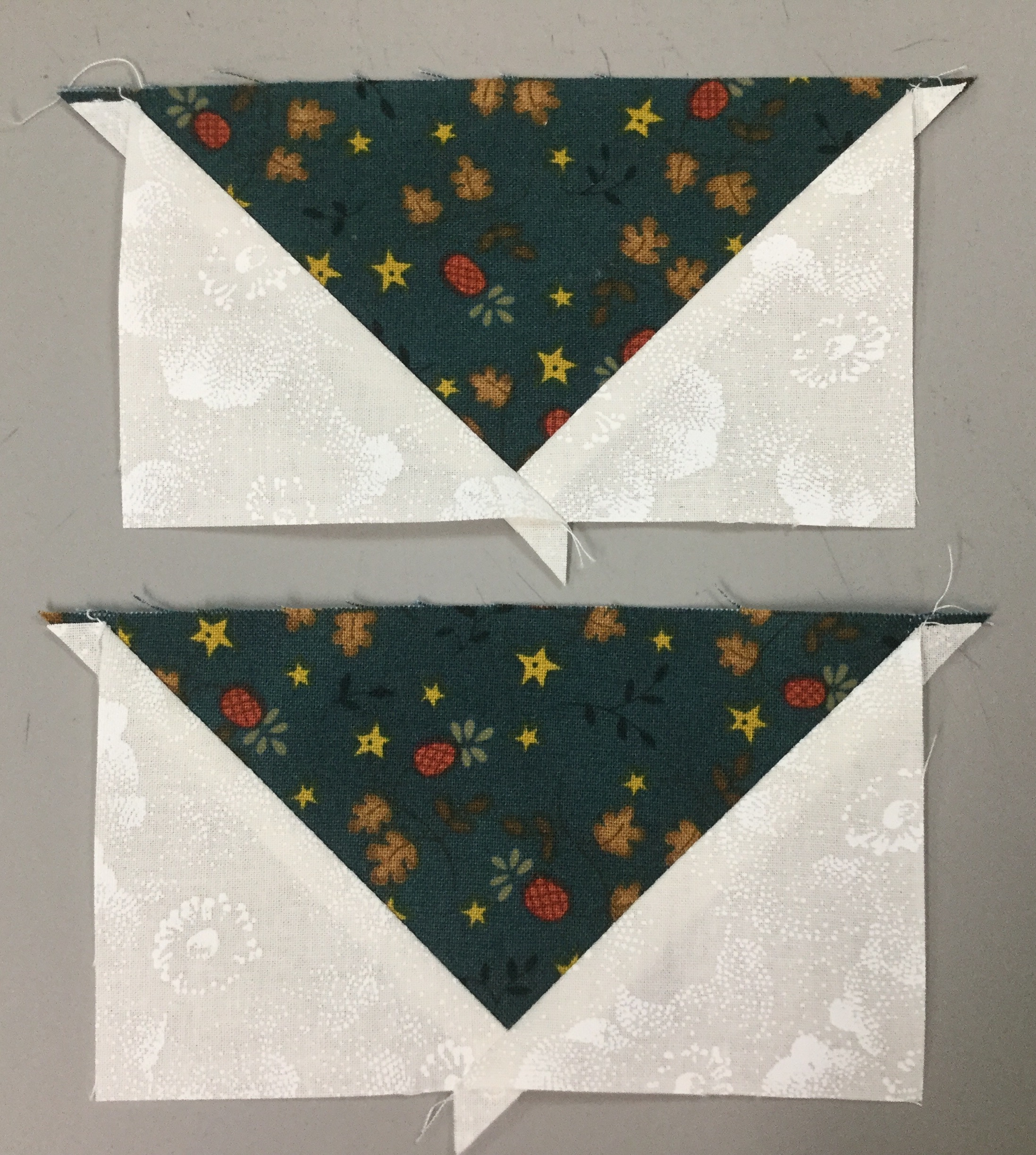

09 Press

Press the seams toward the smaller triangles.

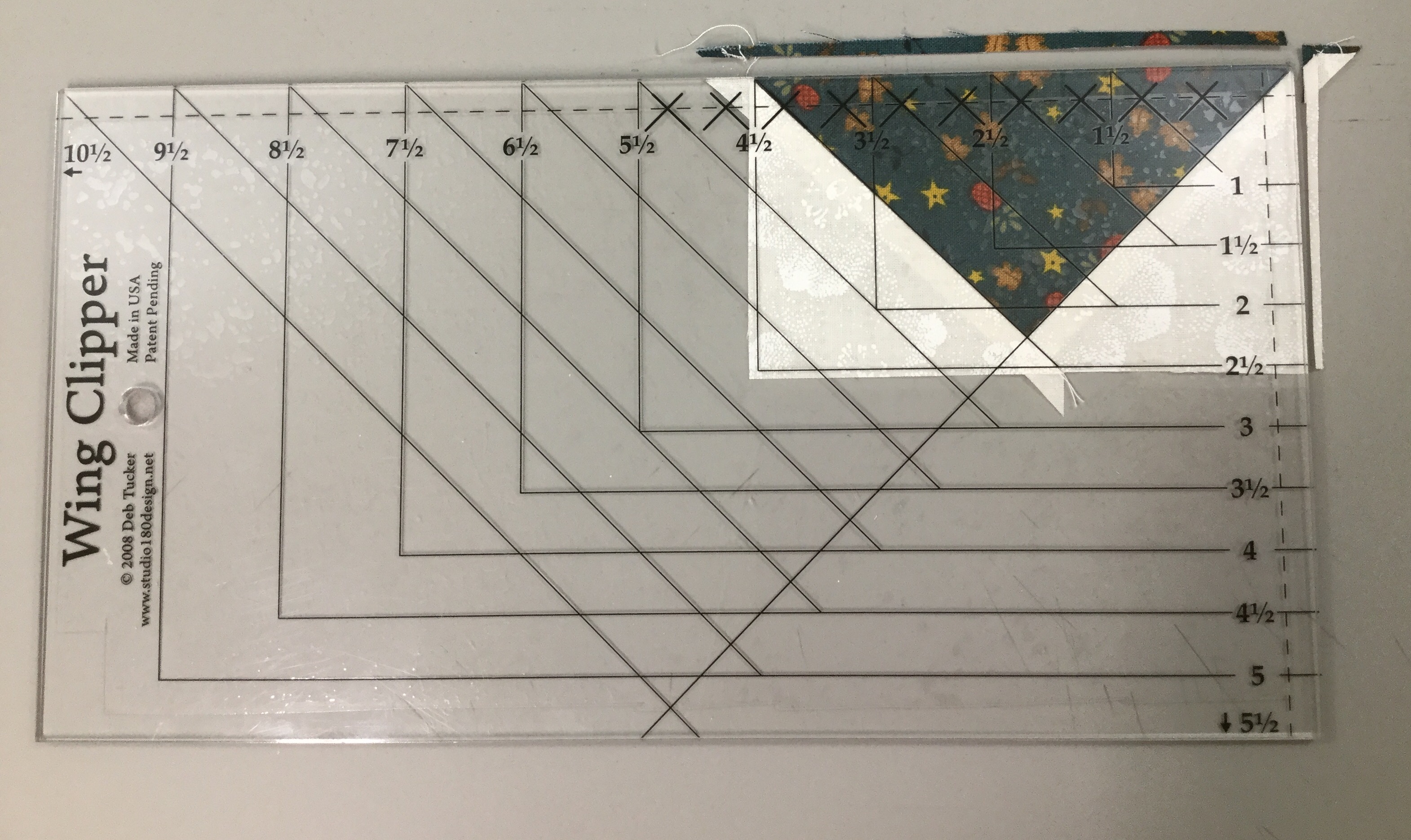

10 Trim 1

Position your oversized unit horizontally on your cutting mat with the goose pointing toward you.  Align the diagonal guide lines of the Wing Clipper with the sewn seams of the flying geese unit. Trim up the right side and across the top.  (See the Wing Clipper Instructions for left hand cutting.)

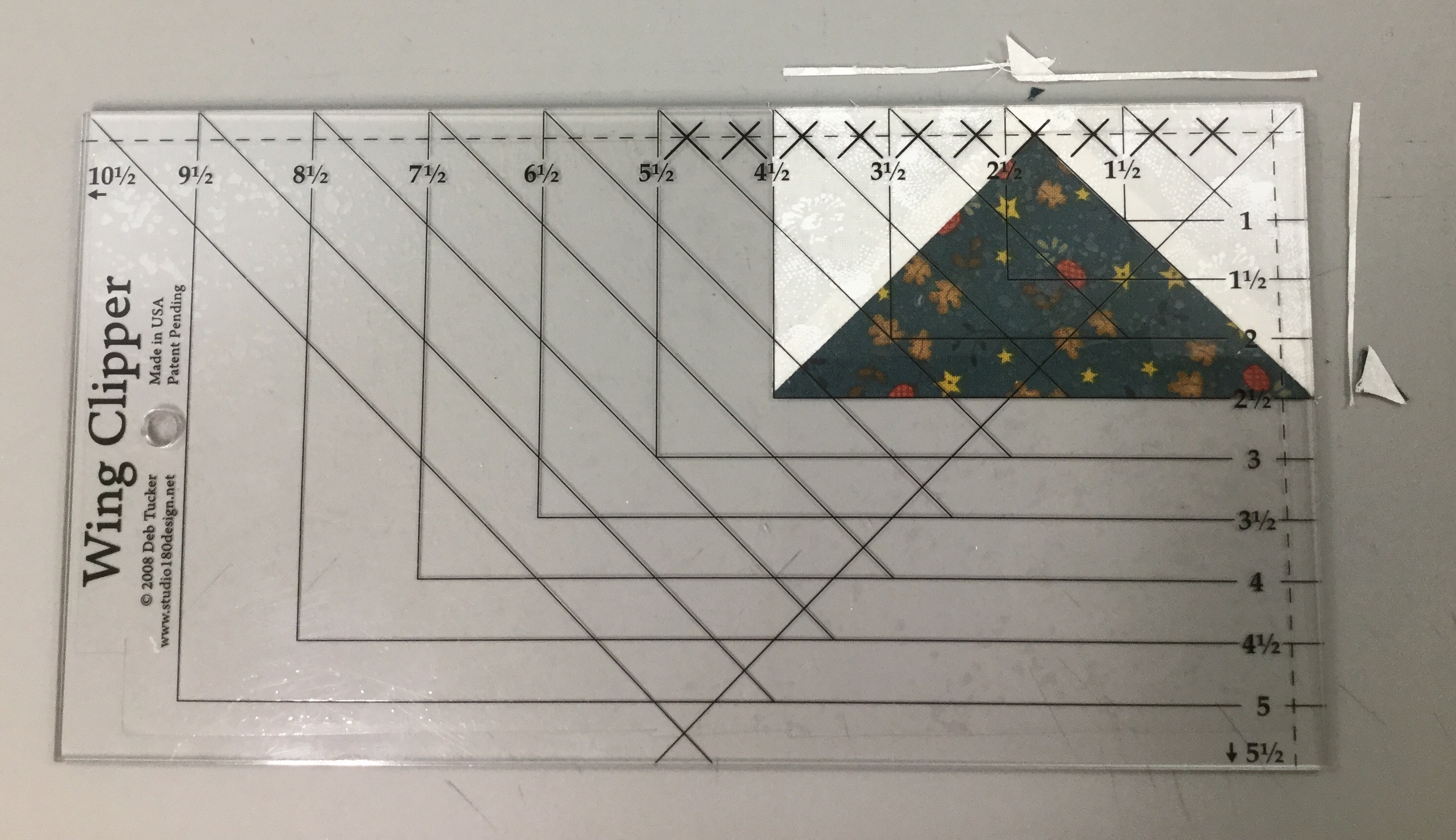

11 Trim 2

Lift your Wing Clipper and rotate your flying geese unit 180 degrees.  Reposition your Wing Clipper to align cleanup guidelines with the previously trimmed raw edges and the “X” at the top with the intersection of the seams.  Trim up the right side and across the top.

12 Picket Position

Remember we only used one of the heart shaped units for the flying geese.  We will use the other to make our left slanted Quicket.  Lay the unit on your cutting mat as shown above.  Position your Wing Clipper tool over the unit, the “X” on the tool should align with diagonal seam.  I am making a Quicket with a cut size of 4 1/2″ by 2 1/2″, so I positioned my tool to ensure I can trim all four sides.

13 Picket Trim1

Trim up the right side then across the top.

14 Picket Trim 2

Lift your Wing Clipper tool and rotate your unit 180 degrees.  Align the trim down lines with the just trimmed raw edges and aligning the long diagonal line on the tool with the single diagonal seam.  Trim up the right side and across the top.

15 Quicket

The cut size of my right slanted Picket is 2 1/2″ by 4 1/2″.  Following the instructions on my Pickets & Quickets Technique Sheet, I bump up the size by  1/4″.  My rectangle is 4 3/4″ by 2 3/4″.  My small square is 2 3/4″.  Draw a diagonal line from corner to corner on the small square.

Position the small square right sides together with the rectangle and align the raw edges.  Stitch on the line and trim the excess.  Press toward the small triangle.

17 Quicket

Position your Wing Clipper tool over the unit, the “X” on the tool should align with diagonal seam.  Trim up the right side  and across the top.

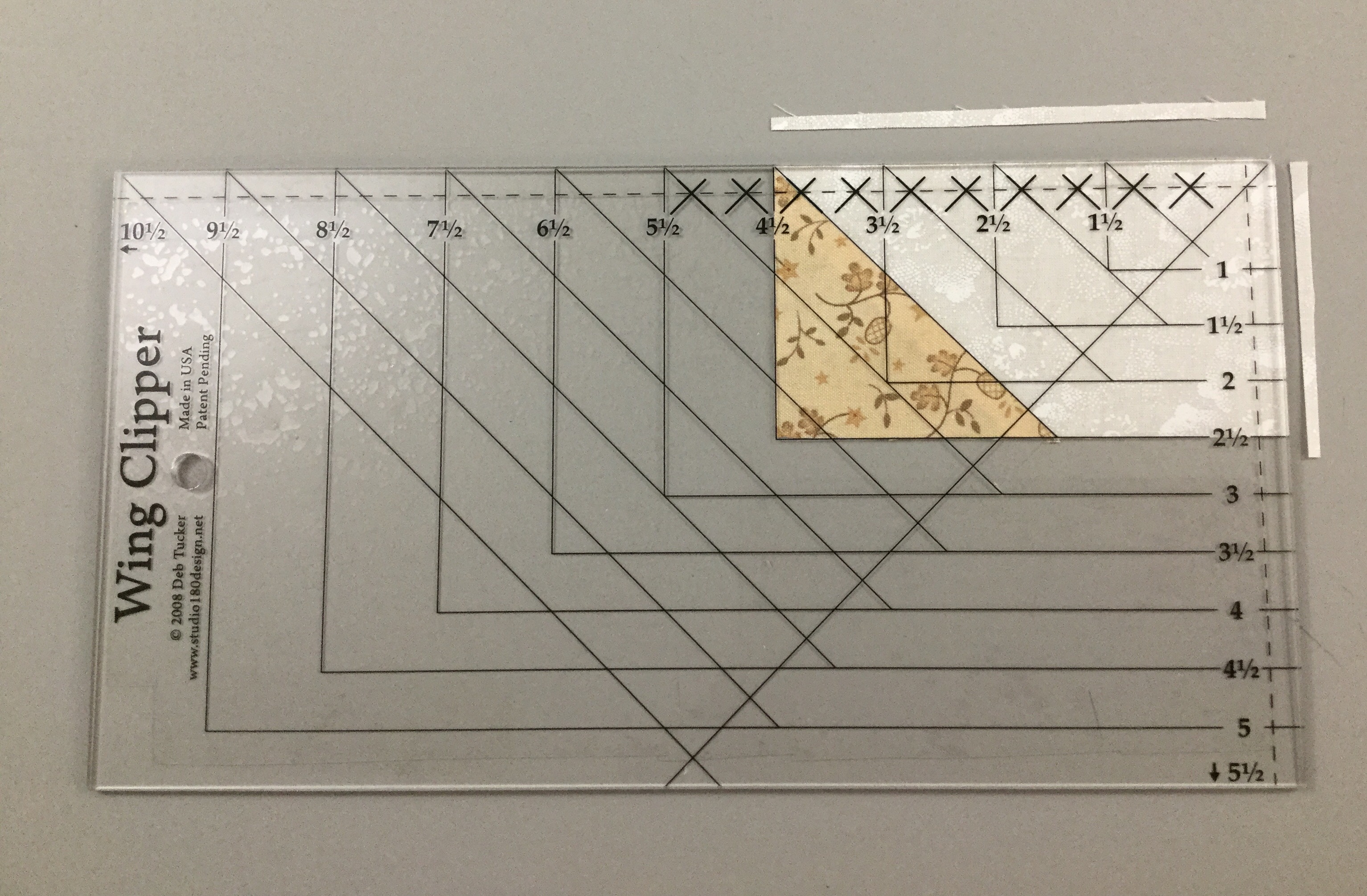

18 Quicket

Lift your Wing Clipper tool and rotate your unit 180 degrees.  Align the trim down lines with the just trimmed raw edges and aligning the long diagonal line on the tool with the single diagonal seam.  Trim up the right side and across the top.

Follow the instructions that came with your Tucker Trimmer I for making Half Square Triangles (HST) in the size you chose.  Using your Magic Wand draw two diagonal lines on the back of one of your starter squares.  Place your starter squares right sides together. Stitch on lines and trim down the center.  I pressed toward the dark fabric.

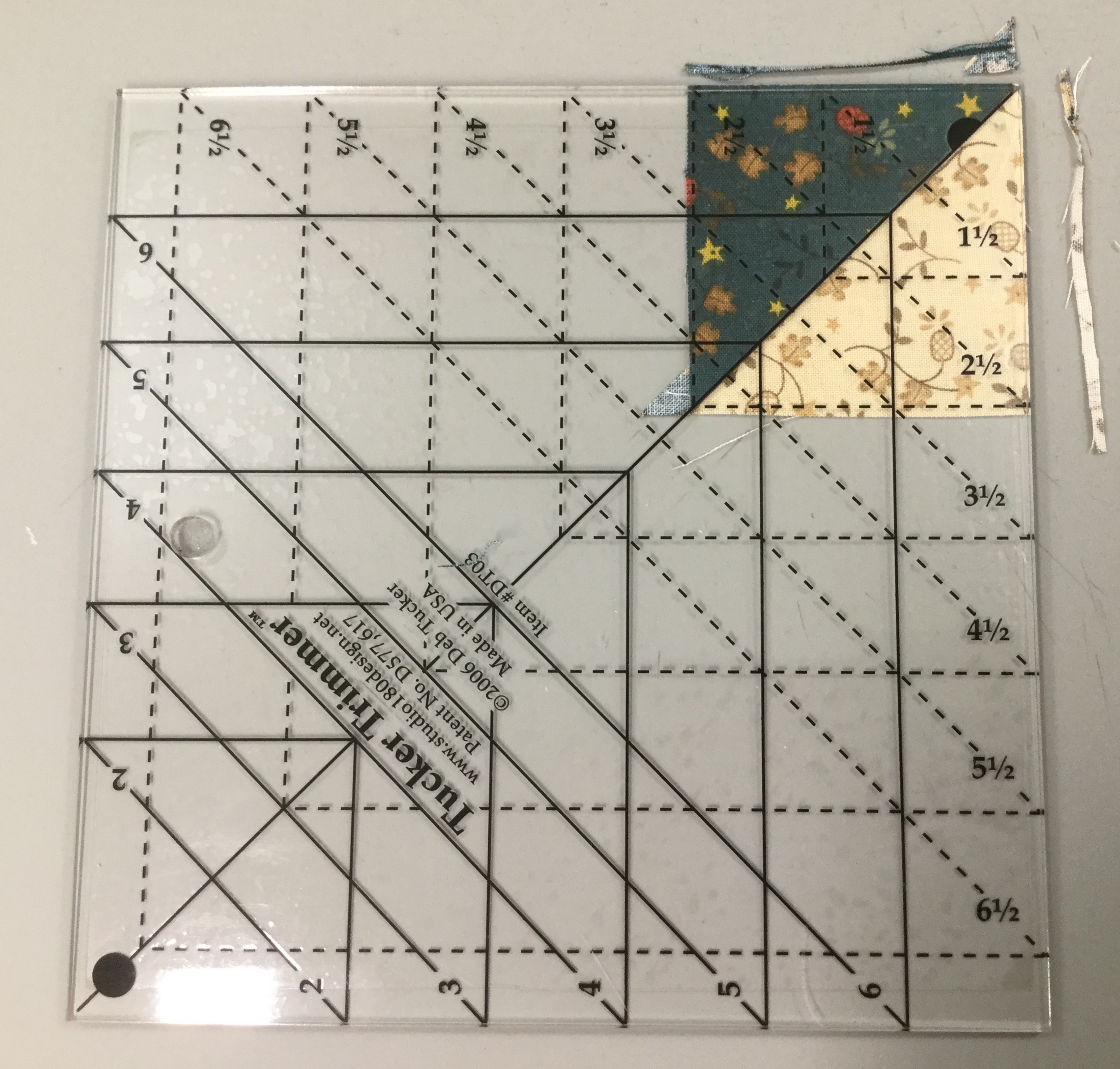

21 HST Trim 1

Trim the oversized HST to the desired cut size.  Mine are 2 1/2″.  (See the Tucker Trimmer Instructions for left hand cutting.)

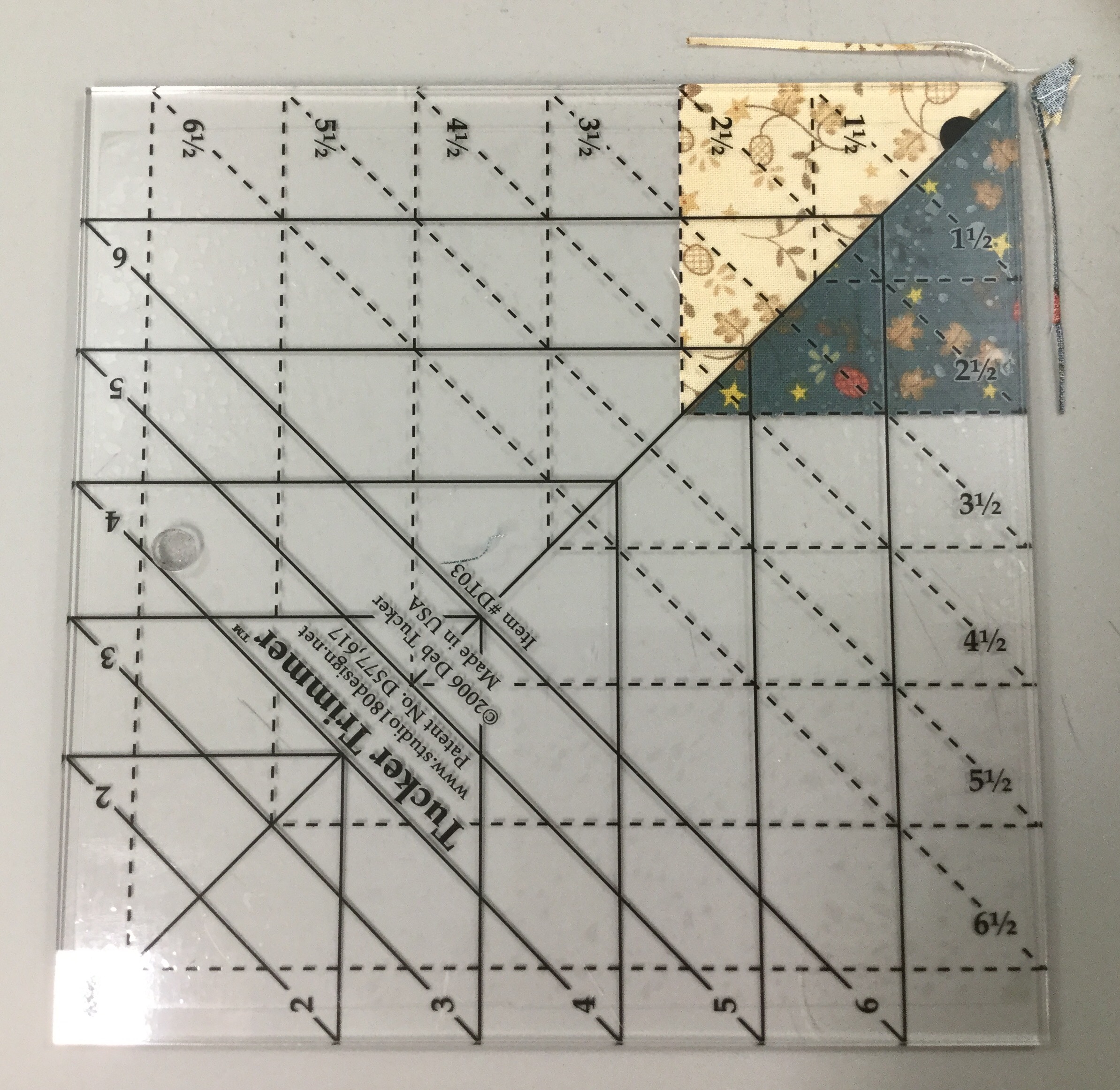

22 HST Trim 2

Lift your Tucker Trimmer and rotate the HST 180 degrees position the diagonal line and the outline of the square to the measurement desired and trim up the right side and across the top.

23 Unir Layout

We are now ready to sew this unit together.  Layout the  2 flying geese, 1 left slanted Quicket, 1 right slanted Picket and 1 half square triangle as shown above..

First stitch the 2 flying geese together, press in the direct the geese are flying. Then stitch the geese to the right slanted Picket.  Press toward the Picket.

Stitch the HST to the left slanted Quicket, pressing toward the Quicket.

25 Stitch 2 together

Stitch the two sections together.

26 Block Layout

Repeat the process for each of the other 3 sections.  If all of your geese are the same color you can make all your flying geese in sets of four, then make the Pickets & Quickets using the method in the technique sheet.  When I stitched the four sections togehter I pressed the seams open to avoid bulk.

27 Block

As I said in the beginning, “very cool block”!

BlockBuster 4 – Capital T Variation

This is a great block.  04 Capital T Variation requires the use of your Wing Clipper I, & Tucker Trimmer I.  You’ll be making flying geese, combination units and quarter square triangles.  The supply list shows 3 block options. I chose the first 3 color combination because I’m using some Kim Diehl fabric with a cream background for all my BlockBuster’s so I can make them into a cohesive quilt when I’m done.  You have 3 size choices.  I chose to make mine 12″ blocks with 4″ finished units.

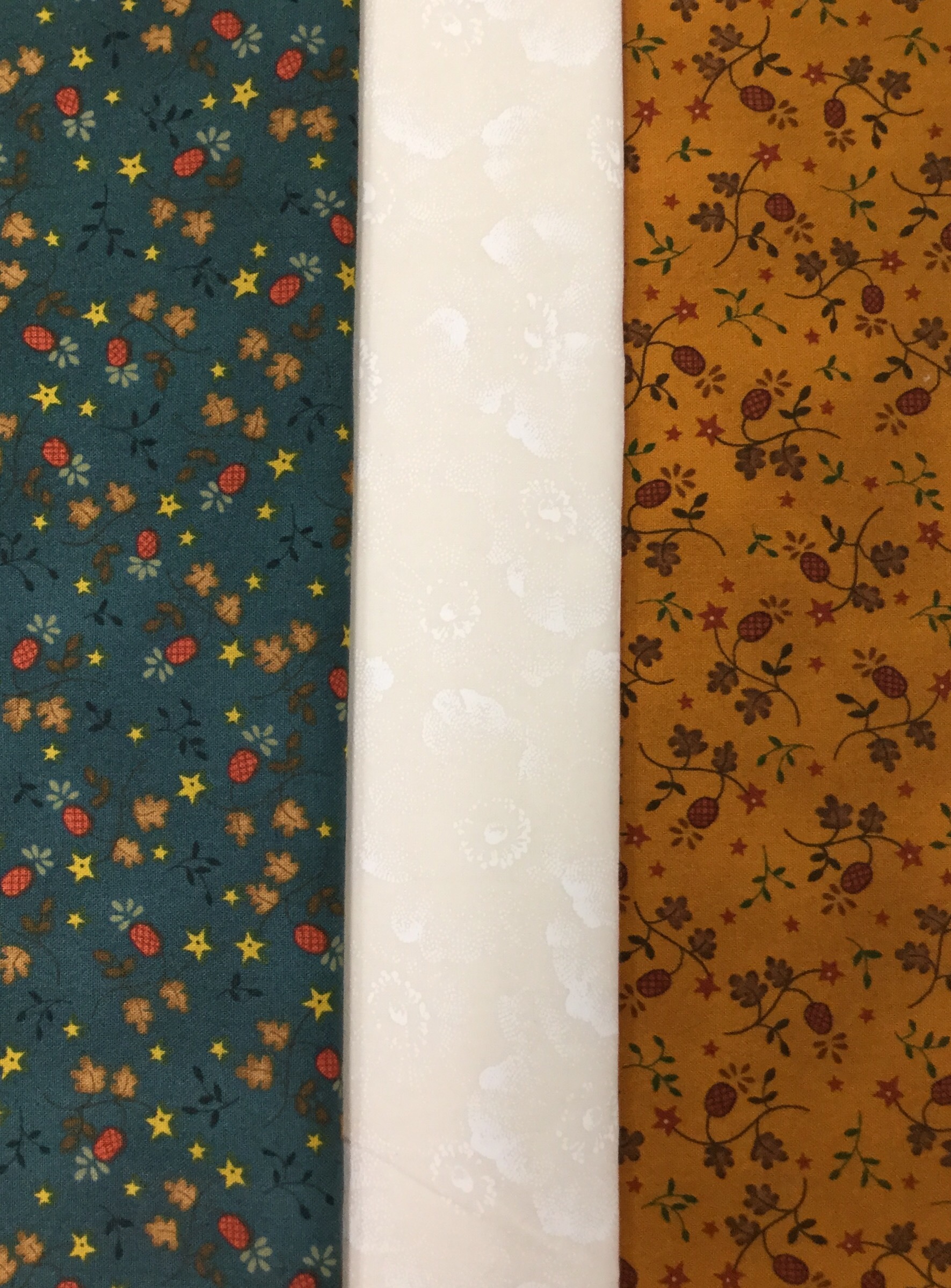

img_4817

All the instructions you need to make the units required for this block are with your Wing Clipper & Tucker Trimmer.  In both there are size charts that tell you what size to cut your starter squares depending on the finished or cut size of your units.  When making your block you will want to pay close attention to your color placement.

img_4818

Remember when making your flying geese, your large square  becomes the body and small squares become the small triangles in your geese.  I have cut my starter squares to make 4 geese with a blue body and gold wings, and 4 geese with a gold body and blue wings.

img_4819

On the backs of my small squares draw 2 diagonal lines using your Magic Wand.

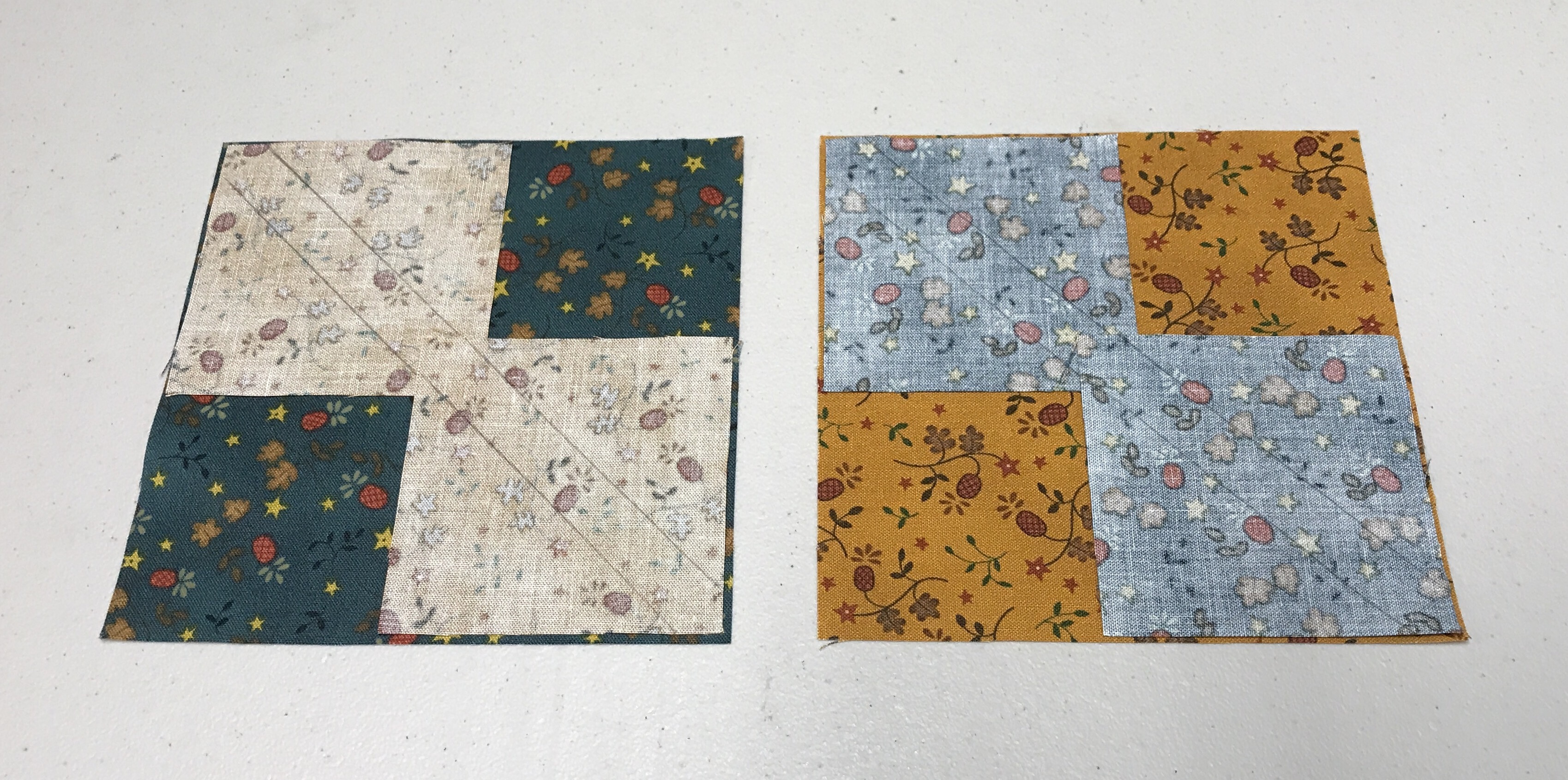

img_0673

Position two small squares on your large squares right sides together as shown above paying attention to your fabric choices.  Nudge your small squares in toward the center just a thread or two (about a 1/16″).  This will give more to trim off later.

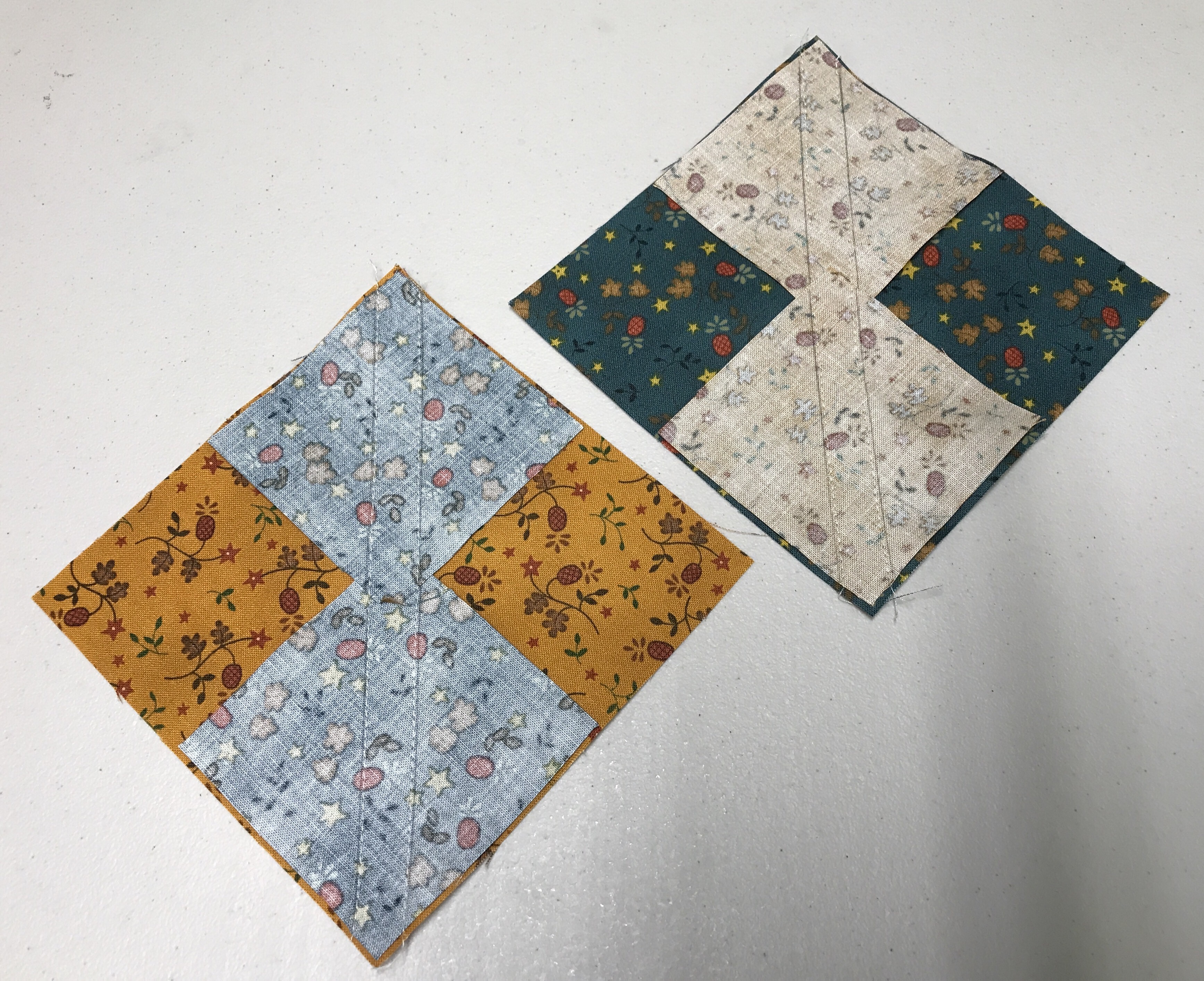

img_0674

Stitch using a scant 1/4″ seam allowance.

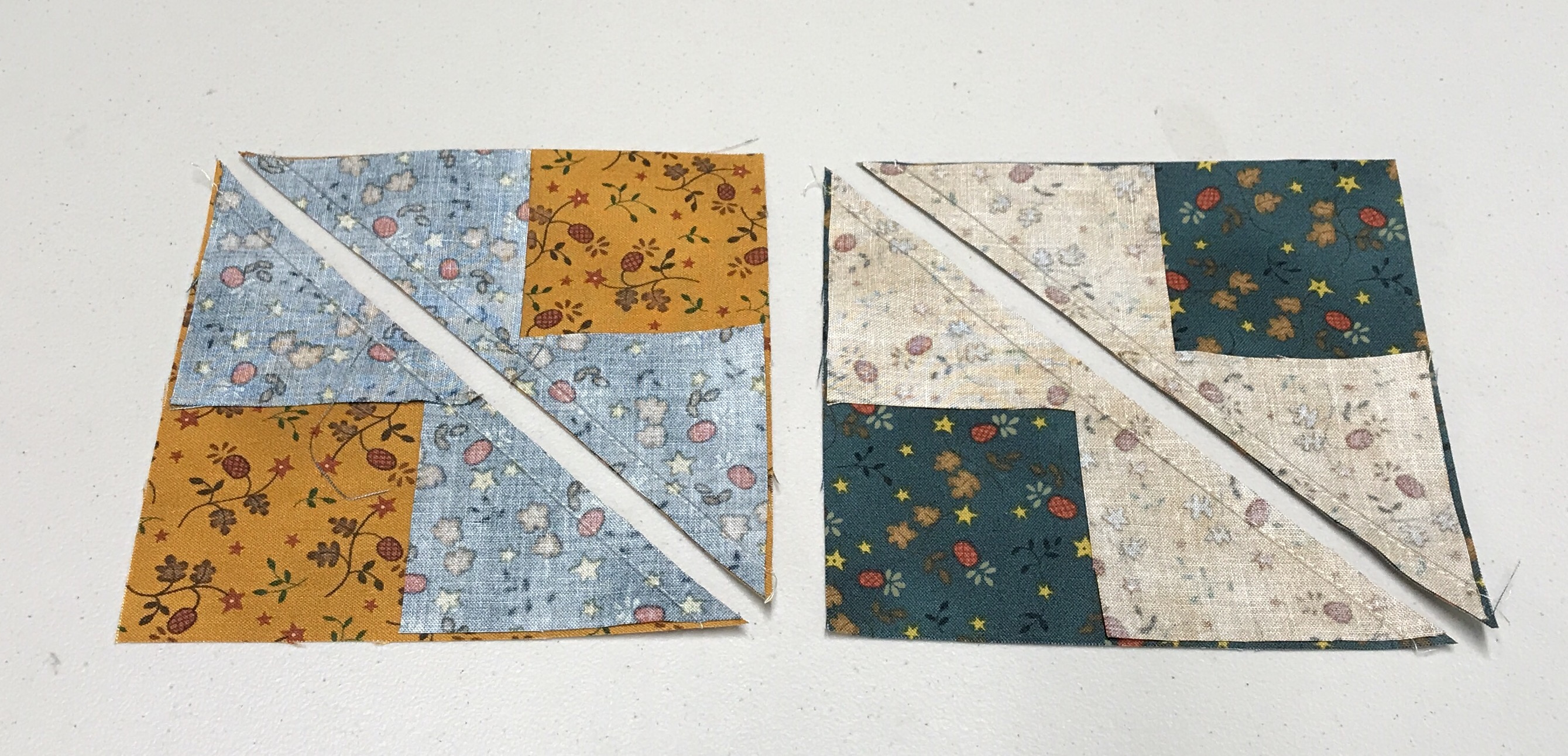

img_0675

After stitching, cut apart.

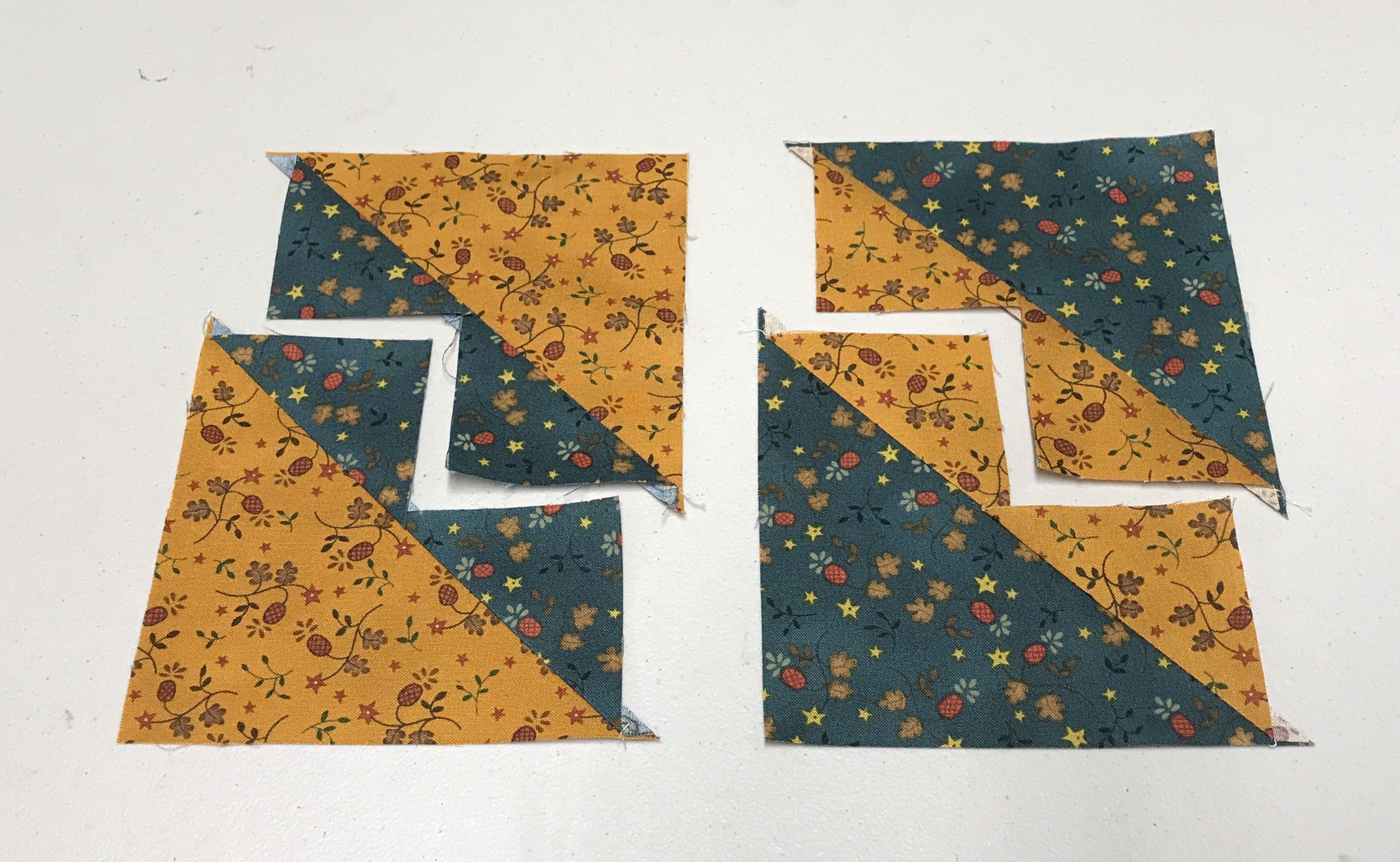

img_0676

Press toward the small triangles. Remember “what you are pressing toward – always goes on top”!

img_0677

Position one small squares on the corners of the previously pieced units, nudging the squares away from the edges as before.

img_0679

Stitch using a scant 1/4″ seam allowance. Cut apart.

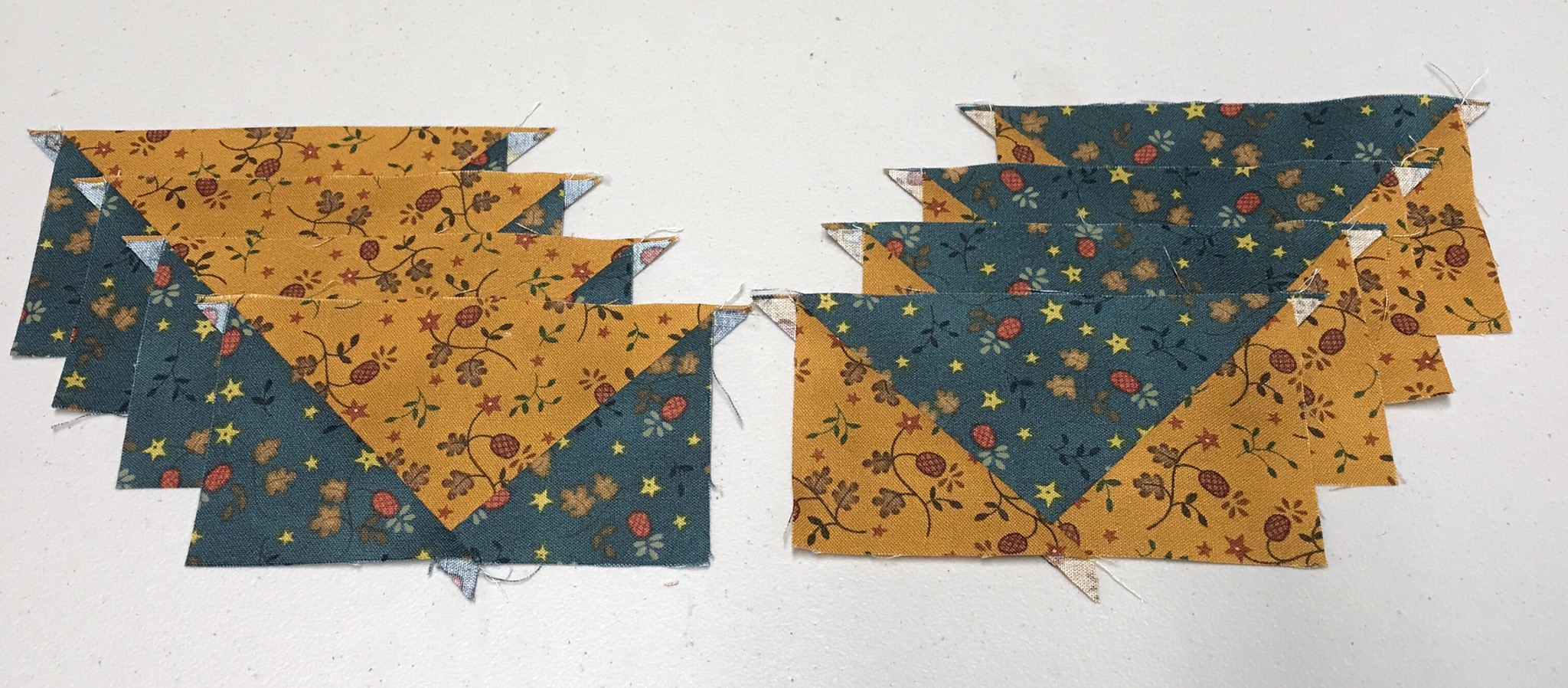

img_0680

Press toward the small triangles.

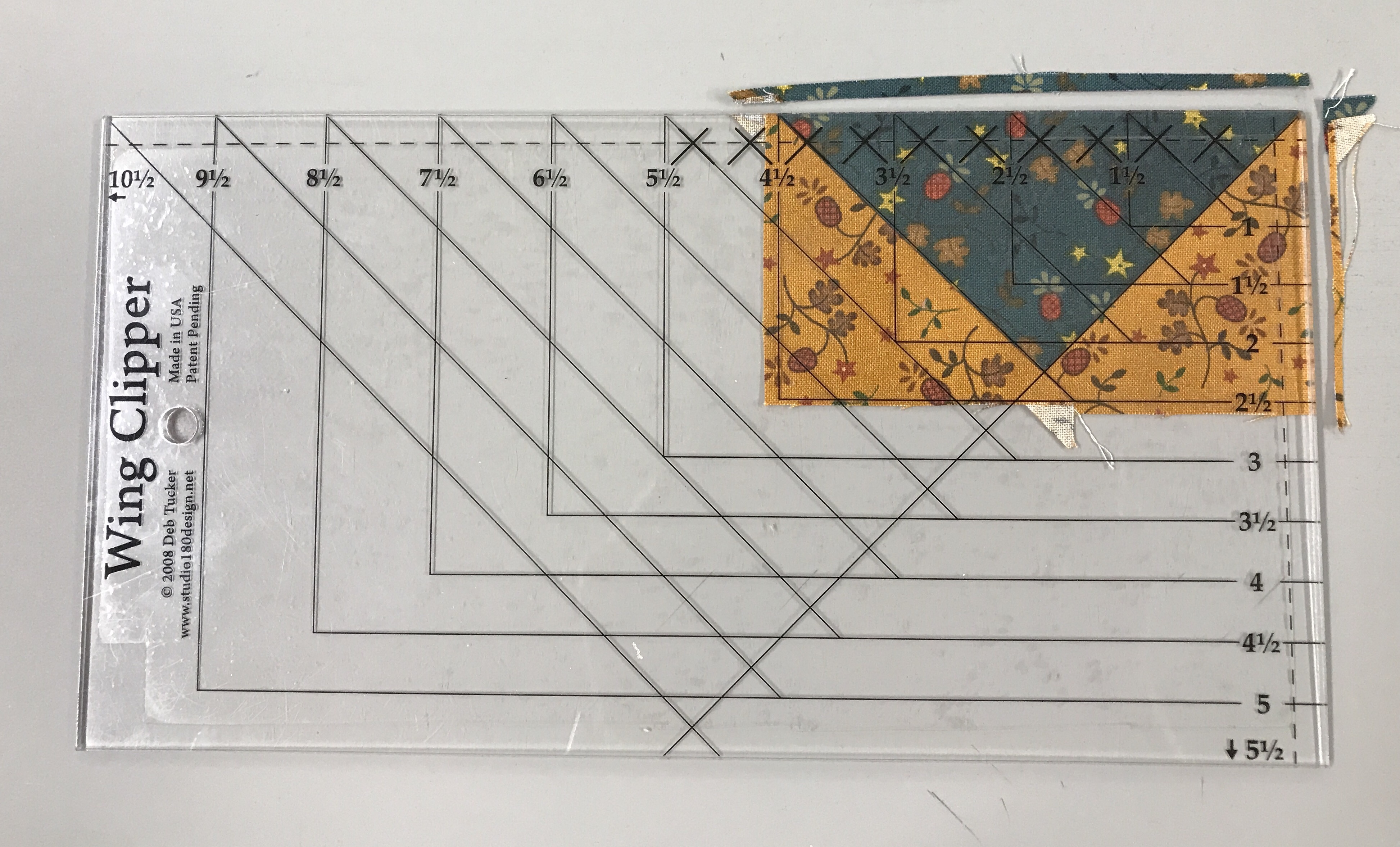

img_0683



Position your flying geese unit pointed toward you (left handers see your Wing Clipper instructions).  Align the diagonal lines on your tool with the seams in your unit.  As you can see I’m am making a 2″x4″ finished flying geese, so the cut size is 2.5″x 4.5″.  Trim the two sides as shown.

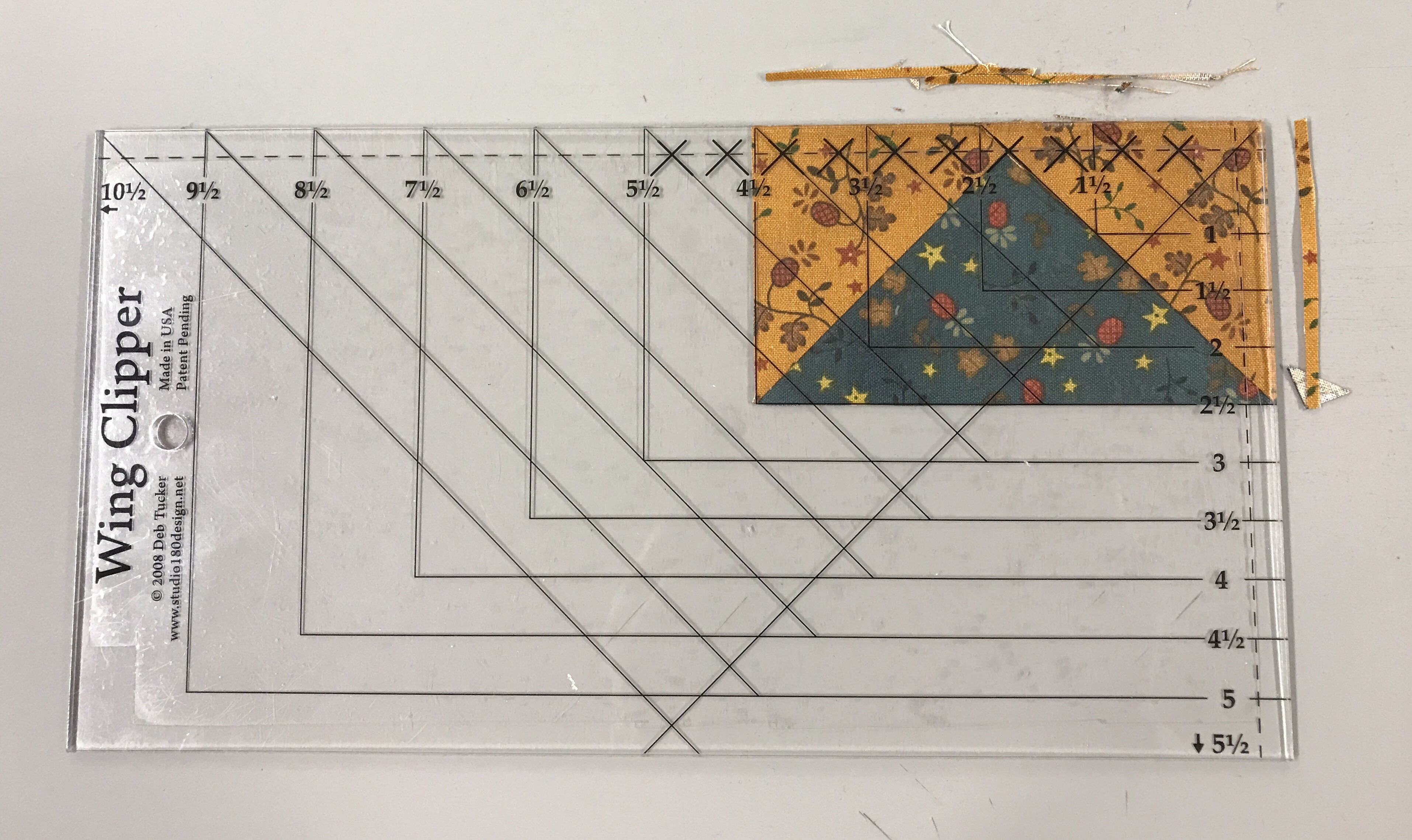

img_0684



Rotate your unit and reposition the Wing Clipper to align the previously trimmed edges and the X at the top with the intersection of the seams and trim again.

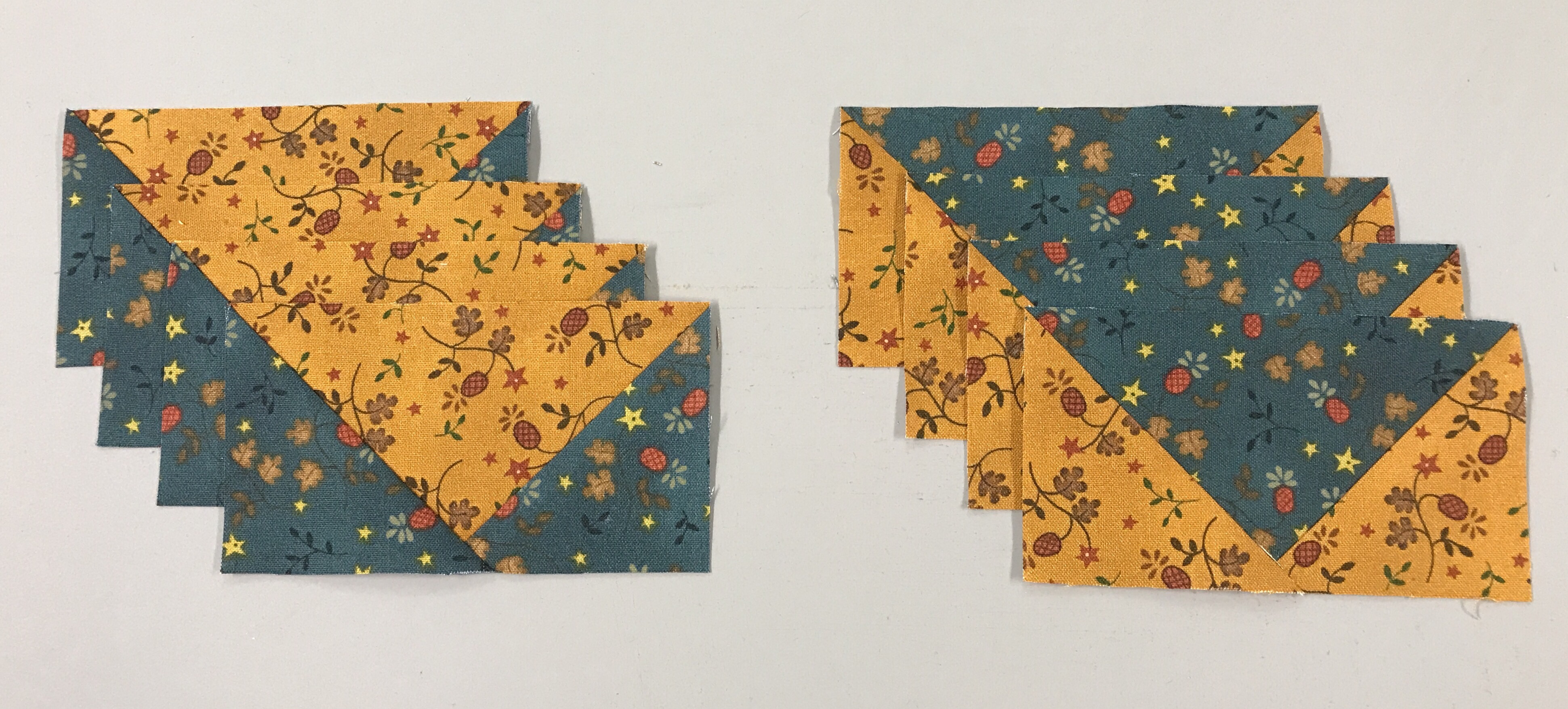

img_0685

Repeat with all your flying geese units.  I now have two sets of 2.5″ x 4.5″ flying geese.

Combination Units:  after checking my size chart I know my starter squares for 4″ finished units are 5.5″.  I cut one gold, one blue and two background squares, all 5.5″.

img_0688

Combination Units start by making half square triangles.

I grabed my Magic Wand and drew two diagonal lines on the back of one of my gold 5.5″ square.  Position the gold square on the blue with right sides together and align the edges.  Stitch on both lines using a scant 1/4″ seam allowance. and cut apart.

img_0691

Press toward the dark triangle.  Grab your Magic Wand again and draw two diagonal ines on the back of both Half Square triangles.



Position each half square triangle on a 5.5″ background square, right sides together centering it.  Stitch using a scant 1/4″ seam allowance. Cut apart as shown above.

img_0694



You now have 4 combination units.  Note: this process creates units that are “mirror images”.

img_0695

Position the Tucker Trimmer over the unit, carefully aligning both diagonal lines with the stitched seams as shown and trim.

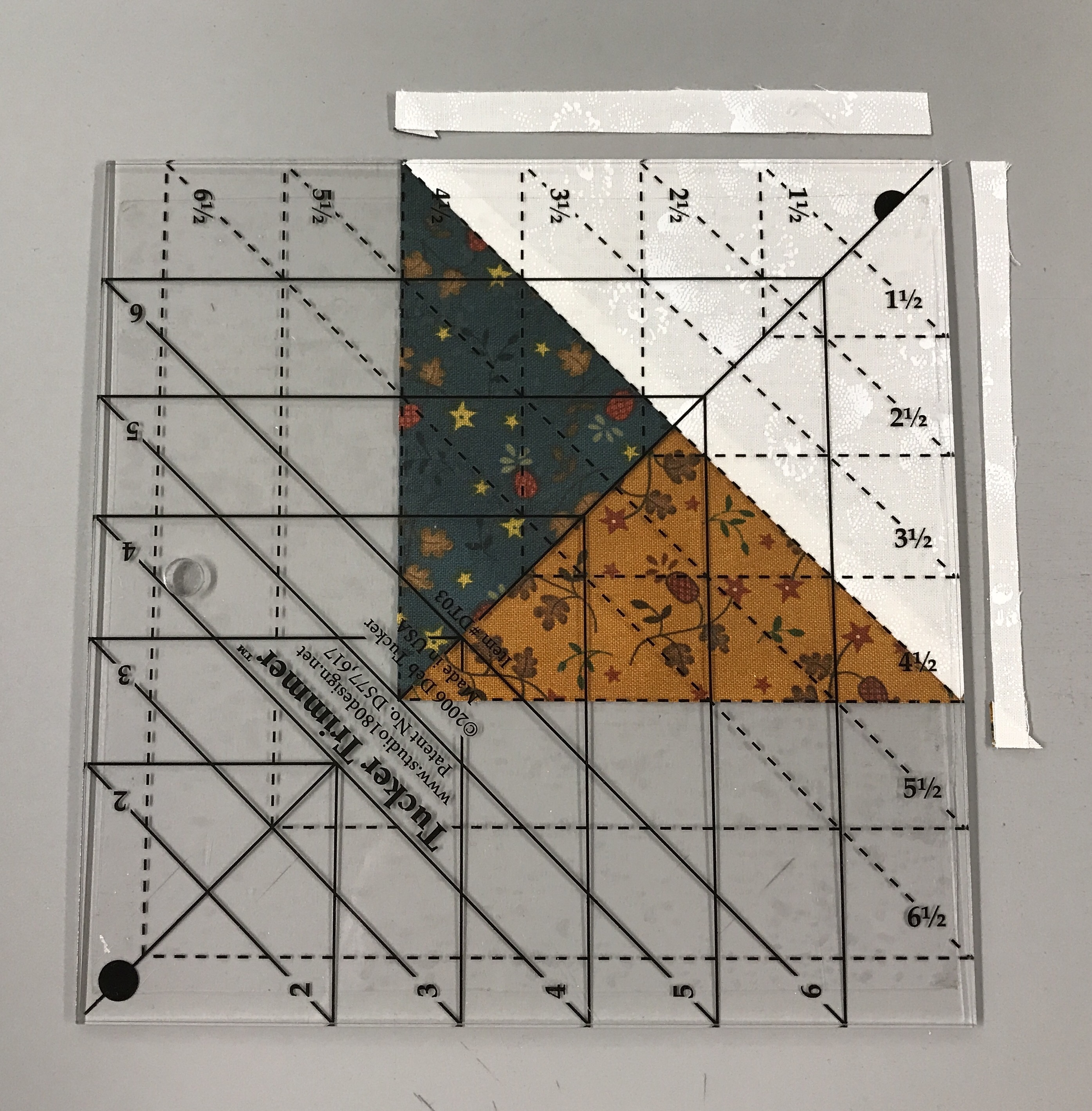

img_0696

Rotate the unit and line up the Tucker Trimmer again.  This time be sure to position both diagonal lines and the outline of the square to the exact measurement desired and trim again.

img_0697



Four beautifully trimmed combination units for the corners of our block.

Quarter Square Triangles:  Check your size chart.  These are 5.5″ starter squares.

On the back of my gold square I have again used my Magic wand to draw to diagonal stitching lines.

Position the gold square over the blue square, right sides together, aligning the edges.  Stitch using a scant 1/4″ seam allowance and cut apart.

img_0702

Press toward the dark triangles. Using your Magic Wand Draw 2 diagonal lines on the back of one half square triangle.

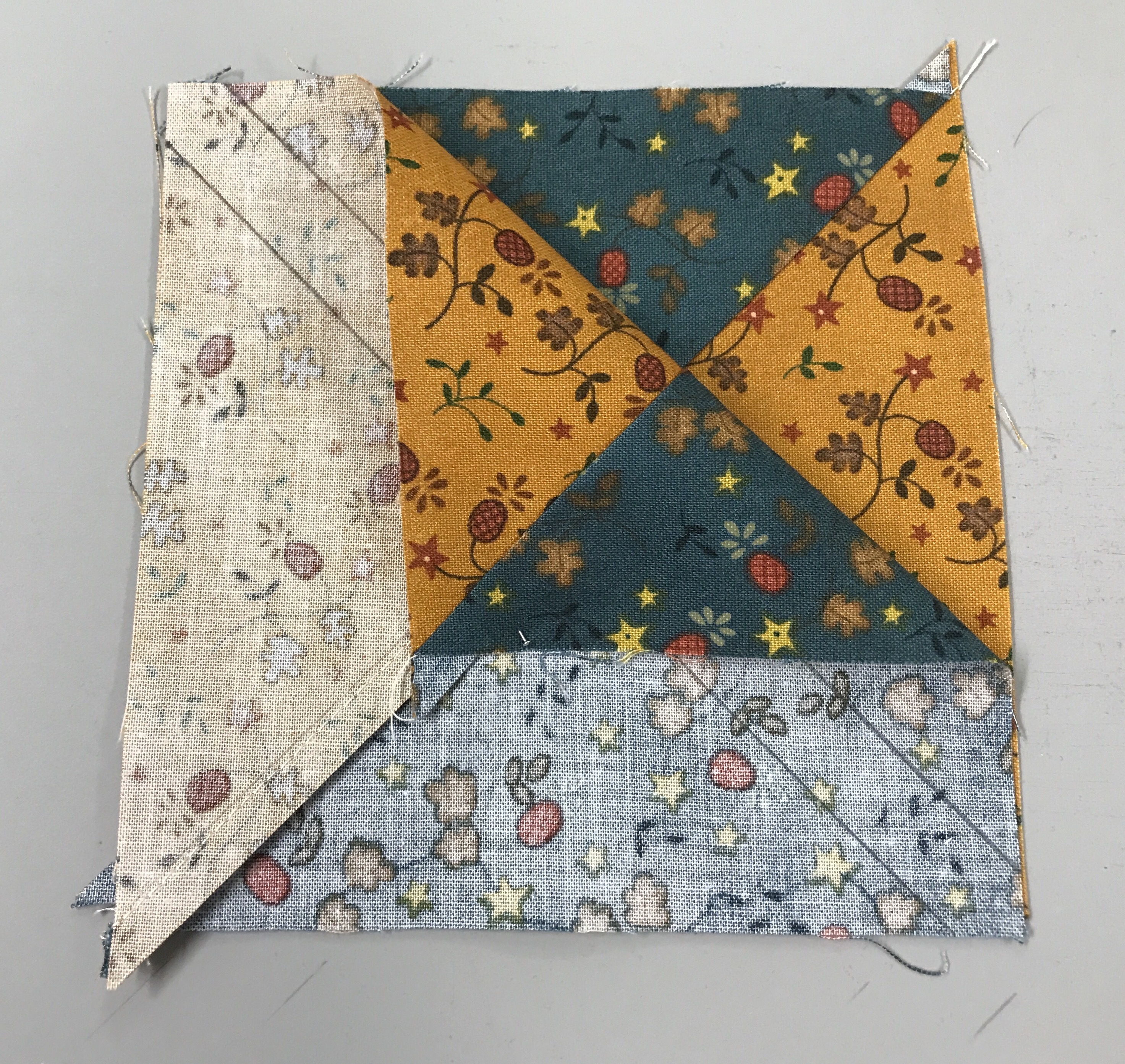

img_0703

Position the two half square triangles right sides together, making sure the colors are opposite each other (my gold is against the blue and vice versa) carefully nesting the seams as shown above.

Stitch using a scant 1/4″ seam allowance. Cut apart and press swirling the centers as shown above.

img_0706

Position the Tucker Trimmer over the unit carefully aligning both diagonal lines over the seams lines of the unit.  Trim two sides as shown.

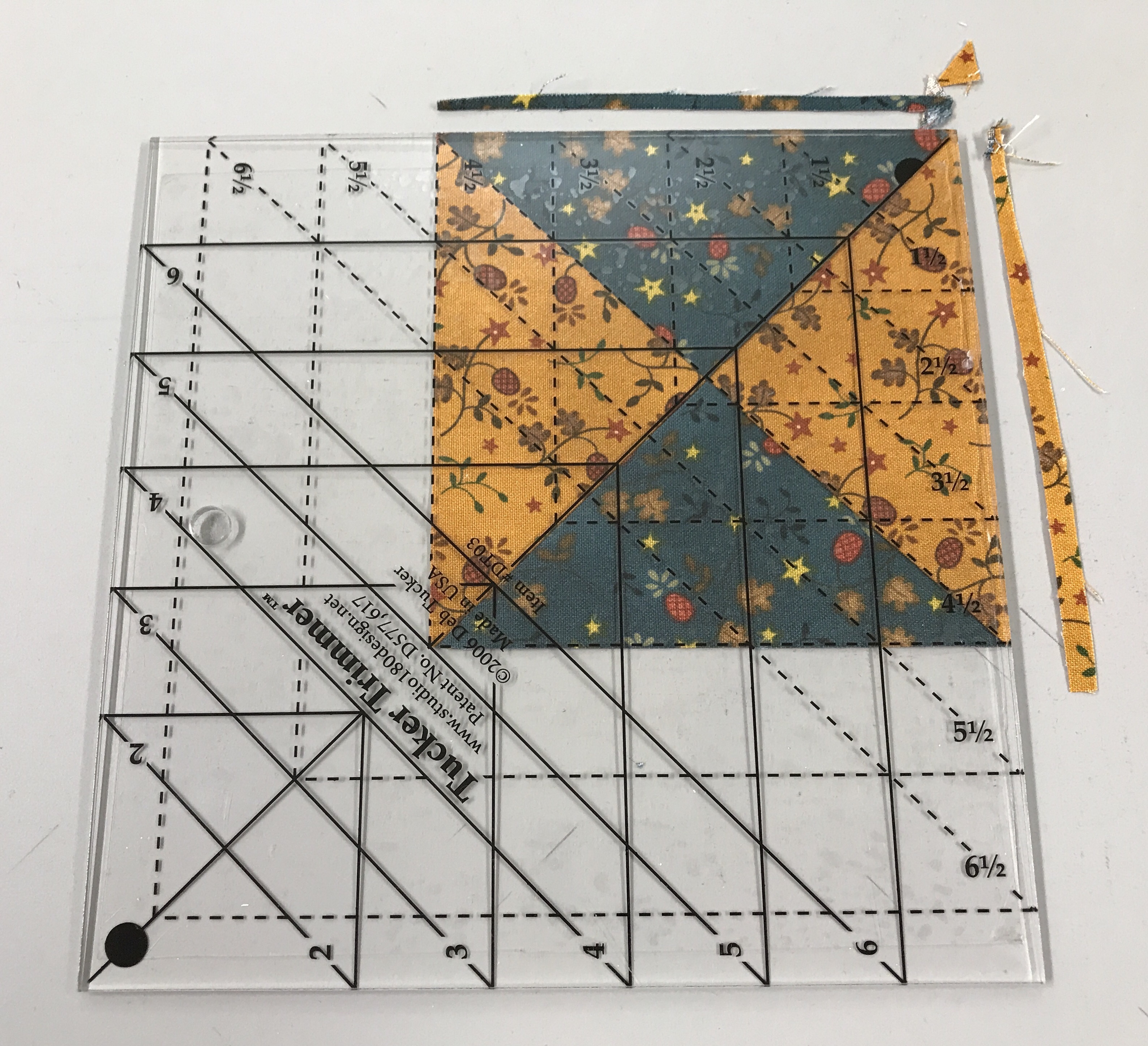

img_0708

Rotate the unit and line up both diagonal lines again along with the outline of the unit to the exact measurement desired and trim. Only one quarter square triangle is needed for this block center.

img_0709

Layout your units as shown above being careful of color placement.  Notice the body of my geese follow the colors in the quarter square triangle.  And the colors in the combination units are the same as the wings on the geese.

img_0711

Stitch your geese together in pairs as shown above.

img_0712

Stitch 3 units into a row as shown above.

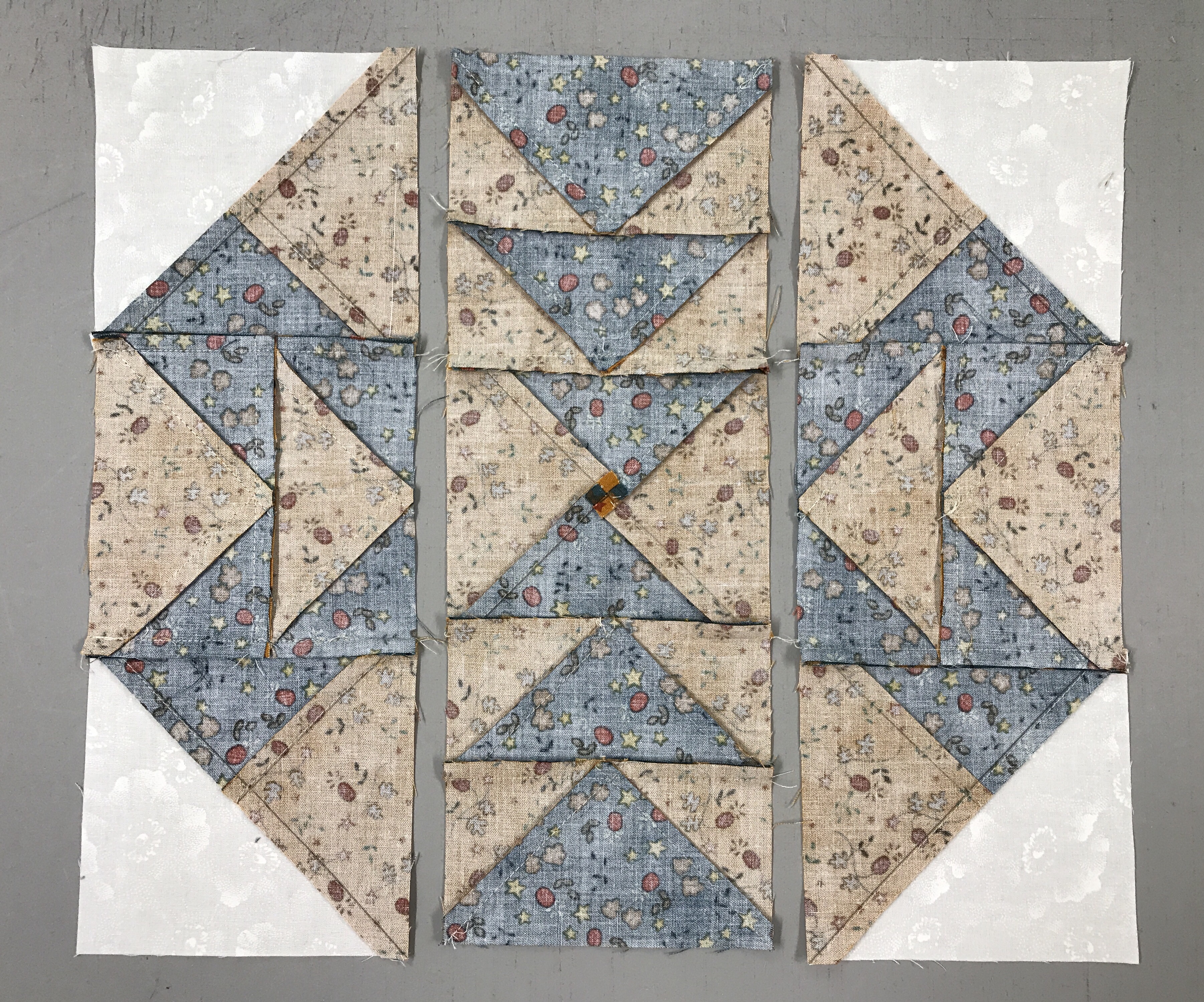

img_0713

This shows how I pressed the block.  The outside rows were press toward the combination units, while the center row was press toward the quarter square triangle.  This allows the rows to nest nicely.

img_0714

The finished 12″ Capital T Variation block! I love It!

BlockBuster 3 – Flying Dutchman

Flying Geese are fun to make when you know how!  When you learn to use Deb Tucker’s Wing Clipper, you will make 4 flying geese at once.  With the Wing Clipper you can make finished size flying geese in 10 sizes from 1/2″ X 1″ to 5″ X 10″.  This block is called the 03 Flying Dutchman and consists of 8 flying geese.  All the instructions you need to make the flying geese units required for this block came with your Wing Clipper’s instructions.  There is a chart with step by step graphics and directions.

I chose the third option in the supply list.  Remember the large square becomes the large triangle or body in your flying geese, and the small squares become the side triangles or wings in your units.

I am making my BlockBuster blocks 12″ finished size.  That way when I’m done I can make a quilt.  When using the Wing Clipper you start with one large square and 4 small squares.  IMG_0575

For a 12″ block, my units need to be 3″ x 6″ finished size.  According to the chart in my instructions my large square should be cut 7 1/2″ and my small squares should be cut 4″.  Because I need 8 flying geese units I cut 2 large squares and 8 small squares.

IMG_0576

Take your Magic Wand and on the back of your small squares draw lines diagonally corner to corner as shown above.

IMG_0577

Position two small squares on one large square as shown.  When positioning, nudge the small squares toward the center a thread or two.  This gives you a little more to trim off.

IMG_0578

Sew on lines and cut apart as shown above.

IMG_0580

Press toward the small triangles.  Position another small square as shown above, again nudging the small square away from the edge about 1/16th of inch.

IMG_0581

Sew on the lines and cut apart, and press.

IMG_0582

You now have 4 oversized flying geese units.  Repeat the same process with the second large square and 4 small squares.

IMG_0583

You now have 8 oversized flying geese units.

IMG_0585

Position your oversized flying geese unit horizontally on your cutting mat, with unit pointed toward you as shown above.  Align the diagonal guide lines of the Wing Clipper with the sewn seams of the flying geese unit. Trim the two sides.

IMG_0587

Rotate your unit and reposition your Wing Clipper to align clean-up guidelines with the previously trimmed raw edges and trim.  Check your instruction for Left-handed trimming.

Lay out your units and sew 2 together to make 4 quarters, pressing your seams in the directions the geese are flying.

IMG_0591

Sew your 4 quarters together.

Northern Neighbors

Deb Tucker’s Northern Neighbors pattern features intricate maple leaves and flying geese.  The pattern makes two sizes: Twin (70″ x 95″) & King (104″ x 104″).  I bought the fabric for this quilt over a year ago and had the units cut and ready to sew together into blocks but I became overcome by events!  It was my goal to “get her done” before the year end and I did!

OLYMPUS DIGITAL CAMERA

Northern Neighbors Maple Leaf

This is my favorite leaf block.

OLYMPUS DIGITAL CAMERA

Deconstructed Maple Leaf

The leaf block is made using Studio 180 Design Wing Clipper 1 for flying geese, Corner Beam and Split Rects tools for great leaf point definition.

OLYMPUS DIGITAL CAMERA

One Block

I made the twin size, so I made 6 of these blocks.

OLYMPUS DIGITAL CAMERA

Northern Neighbors

It really is a beautiful quilt.

OLYMPUS DIGITAL CAMERA

Northern Neighbors Label

Can’t wait to see what next year brings.

Jackie’s Folly, AKA Country Fair

Has this ever happened to you?  Deb Tucker’s pattern Country Fair was just featured in Fon’s & Porter Love of Quilting Nov/Dec issue.  I have been wanting to make this quilt for quite awhile, so I thought “this is the time”.

image image


I make my Square Squared and Flying Geese units (using my Wing Clipper 1 & Square 2 tools of course really makes the process fly).


I get one block done. I feel real good, love the block.


I get the blocks done and begin making the sashings.  Oops I have them facing the wrong way, out comes the seam ripper.


I get the center of the quilt together and begin working on the borders.

OLYMPUS DIGITAL CAMERA

Borders on, feeling accomplished so I post a picture on Facebook…Drat, I put the blocks together wrong and didn’t even notice.  Apparently I’ve had this pattern awhile and did not check to see if there were any corrections.  Deb Tucker always posts any pattern corrections on their website http://www.studio180design.net.

OLYMPUS DIGITAL CAMERA

But I decide to finish it anyway and I’m sure glad I did.  I call it Jackie’s Folly.  I still love it.  This is a great pattern no matter how you finish it.  The quilt measures 72″ by 92″.

Michelle Hiatt is “Sew On The Go”

“Sew On The Go” that’s what I say about my friend and fellow Studio 180 Design Certified Instructor Michelle Hiatt.  Michelle is not only an excellent quilt teacher, she is a very talented quilt designer.  Michelle’s designs are featured in Fons & Porter’s Love of Quilting Magazine, Quilter’s Newsletter & Modern Quilting Unlimited Magazine.  Michelle teaches throughout the northeast, including at American Quilt Society’s Quilt Weeks across the country.  Her quilts have been exhibited in several national quilt shows and have received numerous awards.  Most recently, Winter Jewels (patterned as Loco for Lemoyne Stars), took two 1st place, a 3rd place and viewer’s choice at national quilt shows.

Image processed by CodeCarvings Piczard ### FREE Community Edition ### on 2014-02-02 01:26:03Z | http://piczard.com | http://codecarvings.com

Winter Jewels by Michelle Hiatt

I’m so excited to share 4 of Michelle’s newest patterns for Modern 180 and Studio 180 Design.  Below is “Floral Burst” companion pattern for Studio 180 Design’s Rapid Hunter Star & Corner Pop Tools.  It is amazing to see how just popping a corner of the hunter star block and inserting a pop of color adds so much.

FLORAL BURST

Next is “Diamonds in the Sky” companion pattern for the Studio 180 Design’s Corner Beam Tool.  I love the Corner Beam tool and this pattern looks like fun.

DIAMONDS IN THE SKY

Below is “Finley’s Fence” companion pattern to Studio 180 Design’s Tucker Trimmer I and Corner Pop tools.  This would make a great baby quilt.

FINLEYS FENCE

Last but not least is “Zig Zag Zany” companion pattern for Studio 180 Design’s Wing Clipper I and Tucker Trimmer I Tools. It is so much fun to see the many different ways to use flying Geese!

ZIG ZAG ZANY

I purchased all 4 and can’t wait to make them.  Look for these patterns soon at Studio 180 Design and at Michelle’s Etsy Shop Sew On The Go.  You can reach Michelle through her website Sew on the Go.

Deb Tucker Certified Teacher Reunion

Tomorrow I leave for Pennsylvania for the Studio 180 Design Inaugural Certified Teacher Reunion. Whew is that a mouthful!  I have been so excited about attending this event that I got sick two days ago.  I have been in bed for two days trying to get well enough to drive 8 hours tomorrow.  We were the first group of quilters to get certified by Deb Tucker.  After our weekend reunion, Deb will start the process of certifying the second group of lucky inductees.  We (the first group) are so excited to see each other again, we really bonded over our experience together.

Reunion Mystery

To prepare for this weekend, we were given instructions for a Deb Tucker Mystery Quilt.   We had to make many, many ,many Split Rects, Flying Geese, and Half Square Triangles.   We were also tasked with creating a challenge block to see if we can figure out what Studio 180 Tools were used to make it.  I love playing block detective.  I call it being a QSI (Quilt Scene Investigator).  The only trouble is I tried making mine while in a NyQuil induced stupor.  I guess I will share it as what NOT to do!

We are going to try out a new yet to be released pattern by Deb Tucker.  Also, there are rumors about a new Studio 180 Tool!  I can’t wait to get there.  I’ll let you know what goes on!
